How to Reduce Risk in Superalloy CNC Machining: Tolerances, Heat Treatment, and Inspection
How to Reduce Risk in Superalloy CNC Machining: Tolerances, Heat Treatment, and Inspection
Reduce risk in superalloy CNC machining by controlling one connected route from drawing revision and exact material condition through datums, machining stages, thermal processing, inspection, and final release. The practical tool is a risk register that assigns each critical characteristic a manufacturing state, control, evidence owner, and hold point. This matters because a dimension that passes while clamped, before heat treatment, or before final surface processing does not prove that the delivered part will pass in its released final condition. Engineering, quality, purchasing, the machine shop, and any special-process supplier therefore need the same approved baseline before stock is cut.
A sound superalloy CNC machining quality control route does more than select a capable machine. It defines which drawing and specification revisions govern, identifies the grade, product form, and supplied condition, separates functional characteristics from general dimensions, and connects roughing, stabilization, finishing, treatment, and inspection to explicit release gates. Each gate should state what can change next, what evidence is required, and who may accept a deviation. This article focuses on that cross-functional route. It does not replace material-family selection, a detailed quote checklist, a machining-mechanism lesson, a tolerance-only tutorial, or a report-by-report inspection guide.
Why Superalloy CNC Machining Projects Carry Higher Risk
Superalloy machining risk is higher because several variables can interact instead of failing independently. The exact alloy grade, specification, product form, melt or heat, and supplied condition establish the starting material behavior. Retained strength at the cutting edge, concentrated heat, work hardening, and progressive tool wear can then change cutting load and surface condition during a run. Roughing may redistribute stock stress, while a thermal cycle can release additional movement. A process that treats any one of these effects in isolation may hold the first feature yet lose the datum relationship or surface condition that controls final function.
Geometry and verification add another layer. Thin walls, rings, flanges, deep pockets, critical bores, sealing faces, and complex contours can respond differently while supported, after unclamping, and after treatment. Some risks are visible in dimensions; others require roughness, material, metallurgical, or nondestructive evidence. The cost consequence is not just expensive stock. It includes lost special-process time, repeated setup, delayed replacement material, invalid inspection records, and uncertainty over whether a nonconformance affects service. The risk register below converts those coupled concerns into eight gates that a buyer can audit before authorizing the next state.
Risk gate | Control, evidence, and release decision |
|---|---|
Material identity and starting condition | Risk begins when the drawing, purchase order, certificate, stock marking, or traveler describes a different grade, specification, form, heat, or condition. Verify the applicable material record and physical identity before cutting, preserve heat or lot traceability through subdivision, and hold the job when the supplied state does not match the approved process assumptions. |
Datum and tolerance definition | Ambiguous datum precedence, conflicting limits, or an undefined final state can make conforming measurements incomparable. Review functional characteristics, datum simulators, modifiers, units, surface requirements, and acceptance rules with the buyer. Release programming and fixture design only against the documented interpretation and record any approved drawing clarification. |
Stock, allowance, and stress response | Uneven stock removal can release residual stress and consume the material needed for later correction. Establish rough, semi-finish, and final allowances around critical features, balance removal where geometry permits, and measure movement after the specified release or stabilization step. The traveler should show that enough stock remains for the next controlled state. |
Fixturing and unclamped geometry | Clamp force can temporarily force a flexible part into tolerance or distort a thin wall during cutting. Define support locations from the datum strategy, limit unnecessary constraint, and verify selected characteristics after unclamping and thermal equalization. Release only the free-state result required by the drawing or an expressly approved inspection condition. |
Tool wear and process drift | Progressive wear can change size, edge condition, finish, and cutting load before an operator sees a broken tool. Link tool-life or condition controls to the affected characteristics, use in-process checks and defined reaction limits, and segregate parts made since the last known-good check when drift is detected. Evidence must identify the affected lot or sequence. |
Heat treatment and surface processing | Thermal and surface processes can alter geometry, hardness, microstructure, scale, or the usable surface. Freeze the approved sequence, qualified specification, supplier, masking, allowance, and post-process cleaning requirements. Do not release final machining or inspection until the process certificate and required post-treatment condition have been reviewed against the same part revision. |
Surface and internal integrity | Dimensional acceptance alone cannot close cracking, tearing, heat-affected surface, contamination, porosity, or other specified integrity risks. Map each credible failure mode to a suitable visual, roughness, metallographic, penetrant, radiographic, ultrasonic, or other approved method. State the coverage and acceptance standard instead of requesting every available test. |
Records and final release | A correct part can still be unreleasable when its report lacks revision, serial or lot identity, method, calibrated equipment, result, disposition, or authorization. Build the document index before production, reconcile deviations and rework, and require one final review that joins material, process, dimensional, surface, integrity, and traceability evidence to the delivered quantity. |
Tolerance Review Before Machining Superalloy Parts
Tolerance risk is reduced before machining by translating the drawing into characteristic-level controls rather than labeling every tight number as equally critical. A dimensional limit controls size, while geometric tolerancing controls form, orientation, or location relative to defined datums. Surface roughness describes a measured texture parameter under a specified method. An inspection result is credible only when the method, setup, uncertainty, and part state are suitable. These requirements may interact, but they are not interchangeable. The review should identify the characteristics that govern assembly, sealing, load transfer, motion, or service and connect each one to its datum basis and acceptance state.
The manufacturing plan should then state when each characteristic is created and when it can still move. Supported in-process measurements may guide compensation, released measurements reveal fixture influence, and final-state measurements confirm the condition after specified heat treatment, coating, finishing, deburring, and thermal equalization. A critical bore may be roughed before stabilization and finished from final datums afterward; a thin flange may need balanced removal and an unclamped checkpoint; a sealing face may require both flatness and roughness evidence. General guidance on CNC machining tolerances can support drawing review, but the release plan for a superalloy part must still name its own functional features and state transitions.
Measurement capability must also match the decision. Instrument resolution alone does not prove that a shop can accept a tolerance: access, fixturing, datum simulation, probe or contact geometry, surface condition, temperature, repeatability, calibration status, sampling, and uncertainty all affect the result. The buyer and supplier should agree which dimensions receive in-process monitoring, which receive first-article or full reporting, and which require final independent confirmation. Conflicting requirements, inaccessible features, or a method that cannot discriminate the acceptance band should trigger a hold and drawing or method review, not an undocumented shop-floor interpretation.
Heat Treatment and Stress Relief Considerations
Heat-treatment risk is controlled by defining the supplied material condition and every required thermal state before machining allowances and inspection points are approved. The route may include solution treatment, aging, stress relief, or another specification-controlled operation, but no cycle should be inserted simply because it is common for an alloy family. The drawing, material specification, service requirement, and authorized process specification must establish whether treatment is required, its sequence, the qualified source, permitted condition, test evidence, and responsibility for resolving conflicts. This prevents a supplier from machining to assumptions that belong to a different grade or delivery state.
Where the approved route includes a thermal change, rough machining can establish a balanced shape while leaving documented finishing stock. A specified stabilization or treatment can occur next. Semi-finish or final machining can then restore critical geometry from transferred or re-established datums. The actual sequence depends on material, geometry, and specification, so the traveler should identify the state at every inspection. Allowance must cover credible movement without hiding cracks, laps, scale, or other unacceptable conditions. After treatment, inspect the characteristics that the cycle can affect, review the process certificate, and repeat required dimensional, hardness, surface, or material verification after any later process that can invalidate earlier evidence.
Hot isostatic pressing is a conditional route, not a universal upgrade for machined superalloy parts. Coordination with a qualified hot isostatic pressing service is relevant only when the governing specification, product route, or identified internal-integrity risk requires it. The review must then address condition before and after HIP, dimensional allowance, test coupons or records, subsequent heat treatment, surface removal, and final inspection. If the requirement is absent, adding HIP may create cost, schedule, material-state, and compliance questions without proving lower risk. The release gate is therefore documented technical need plus acceptable post-process evidence, not the presence of an additional thermal operation.
Inspection Methods for Superalloy CNC Machined Parts
Inspection should close a defined superalloy machining risk in the final required state, not produce a large bundle of unrelated reports. Start with each critical characteristic or failure mode, select a method that can observe it, define coverage and acceptance criteria, and state the reaction to a failed or indeterminate result. Material identity, dimensional relationships, surface texture, thermal condition, microstructure, and internal integrity require different evidence. Sampling must reflect the purchase order and risk; first-piece approval does not automatically release every later unit, and a final report cannot repair missing traceability to the item or lot it describes.
Inspection decision | Use, limitation, and release action |
|---|---|
Dimensional inspection | Use suitable gauges or instruments for accessible sizes, depths, runout, and other defined characteristics. Record the drawing revision, feature identity, unit, result, equipment, and final part state. A reading taken under machining restraint is process evidence unless the drawing expressly permits that acceptance condition; confirm release-state features as required. |
CMM and geometric verification | Use a controlled datum alignment and probing strategy for location, orientation, profile, and complex relationships. Confirm access, point distribution, filtering, fixture influence, temperature, and measurement uncertainty. Review the program and report against the governing datum scheme; do not equate software output or probe resolution with proven part conformity. |
Surface roughness and visual condition | Apply the specified parameter, cutoff, evaluation length, direction, and location to functional surfaces, and combine it with visual criteria where burns, tears, burrs, embedded contamination, or handling damage matter. Roughness cannot by itself prove absence of machining damage below the surface. Hold and disposition any condition outside the agreed acceptance basis. |
Material and treatment records | Use certificates, heat or lot identity, marking transfer, authorized process records, and any specified hardness or test results to connect delivered pieces to the approved grade and final condition. A certificate with no traceable link to the part is insufficient. Reconcile quantities, subdivisions, rework, and special-process batches before release. |
Metallographic evaluation | Use a specified location, preparation method, magnification, condition, and acceptance standard when grain structure, phases, surface alteration, or treatment response is a real requirement. A local section or coupon represents only its defined sampling basis and is generally destructive. Engineering must approve how the evidence represents the delivered component. |
Nondestructive examination | Select penetrant, radiographic, ultrasonic, computed-tomography, or another qualified method according to defect type, material, thickness, geometry, access, and required sensitivity. Document technique, coverage, calibration or reference standard, indications, and acceptance. No method detects every orientation and size, so unresolved coverage gaps remain a release hold. |
First article and final package | Use first-article inspection to prove the planned process against the specified characteristics before repeat production, then control changes that could invalidate that approval. The final package should reconcile the approved drawing, deviations, material, outside processes, characteristic results, nonconformance dispositions, serial or lot identities, and delivered quantity into one reviewable release record. |
When microstructure, thermal response, or machining-affected material is a specified risk, metallographic microscopy can provide targeted evidence within its sampling limits. When internal discontinuities are credible and the geometry permits an effective technique, X-ray inspection may support the decision. Neither method should be added as a generic quality signal. The drawing, specification, or approved inspection plan must define the condition, location or coverage, method qualification, acceptance standard, and disposition route. Otherwise, an impressive image can remain disconnected from the actual release question.
The inspection plan becomes useful when its outputs drive action. A conforming result closes the named risk for the identified part and state; a nonconforming result triggers containment, review, and authorized disposition; an inconclusive result creates a hold or an approved alternate method. This logic aligns with broader quality control in CNC machining, while superalloy programs add stronger attention to exact material state, thermal sequence, surface integrity, and traceability. Buyers should review the evidence matrix before production so that required access, coupons, witness points, and records are not discovered after the relevant state has passed.
How Supplier Experience Reduces Superalloy Machining Risk
Supplier experience reduces risk only when it appears as an auditable control system. Useful evidence includes written assumptions, characteristic and process risk reviews, approved setup and datum strategies, tool-drift reactions, defined hold points, qualified outside-process control, calibrated inspection methods, and named owners for material, manufacturing, quality, and release evidence. The supplier should explain how an issue is contained, how affected units are traced, how a deviation reaches buyer authority, and how programming, tooling, fixture, material, treatment, or subcontractor changes are reviewed. General claims about years of experience or machine capability do not answer those release questions.

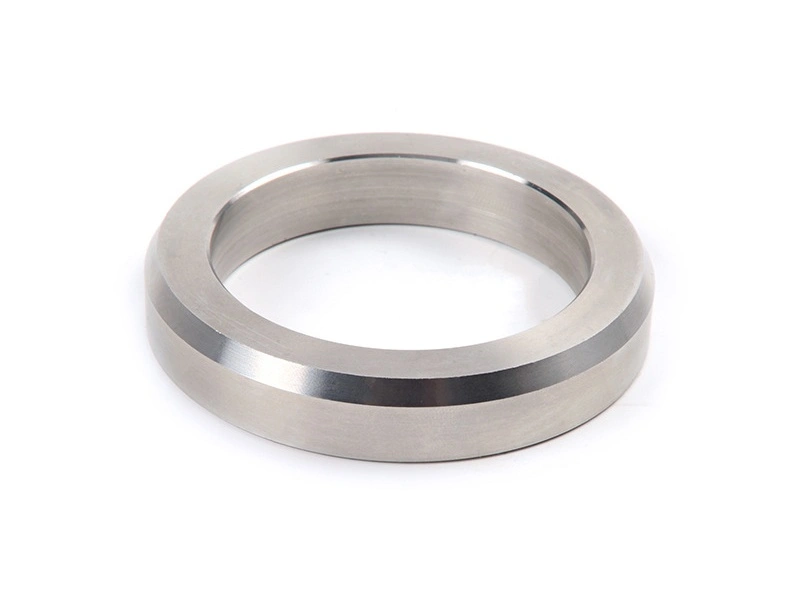

Engineering scenario, not a Neway customer case: consider a thin superalloy ring with a critical bore, flange face, bolt pattern, and final aged condition. The team identifies free-state roundness and face-to-bore orientation as release risks. Stock identity is confirmed, roughing is balanced, and sufficient allowance remains before the specified thermal operation. The ring is measured after unclamping to understand movement, then the final datum surfaces and bore are finished in the approved post-treatment state. Surface and dimensional methods are selected for the actual functional characteristics, and the report links results to the same serial or lot identity. If released movement consumes the finishing allowance, the route stops for engineering disposition instead of forcing the part flat and recording a supported measurement. The buyer can approve production only after the supplier demonstrates the state sequence, measurement capability, change controls, outside-process evidence, and reaction plan. This scenario illustrates the decision chain; actual allowances, cycles, tolerances, sampling, and acceptance criteria must come from the governing design and specifications.
Submit a Superalloy CNC Machining RFQ
A risk-controlled RFQ supplies an unambiguous technical and release baseline. Identify the drawing and specification revisions, exact alloy grade, product form, supplied condition, and document precedence. Define the critical characteristics, datum scheme, required final state, and machining-sensitive geometry. State every authorized heat treatment, coating, or other special process together with surface and internal-integrity requirements. Specify inspection methods, sampling, acceptance standards, report format, material and part traceability, quantity, lot strategy, schedule, packaging needs, and service context. Name the people authorized to clarify requirements or approve deviations. Ask the supplier to return assumptions, exclusions, proposed hold points, outside-process sources, and evidence responsibilities with the quotation so technical differences are visible before purchase.
The buyer's final decision should be go, hold, or revise. Proceed when the supplier's superalloy CNC machining quality control route connects every critical requirement to a feasible process state, capable verification method, traceable record, reaction plan, and release owner. Hold when material condition, datum interpretation, sequence, access, measurement capability, special-process control, or acceptance authority is unresolved. Revise the drawing, specification, scope, or route through the proper authority when the evidence shows that the current baseline cannot be manufactured and verified reliably. That decision framework reduces avoidable scrap and delay without pretending that inspection alone can remove design, material, process, or documentation risk.
