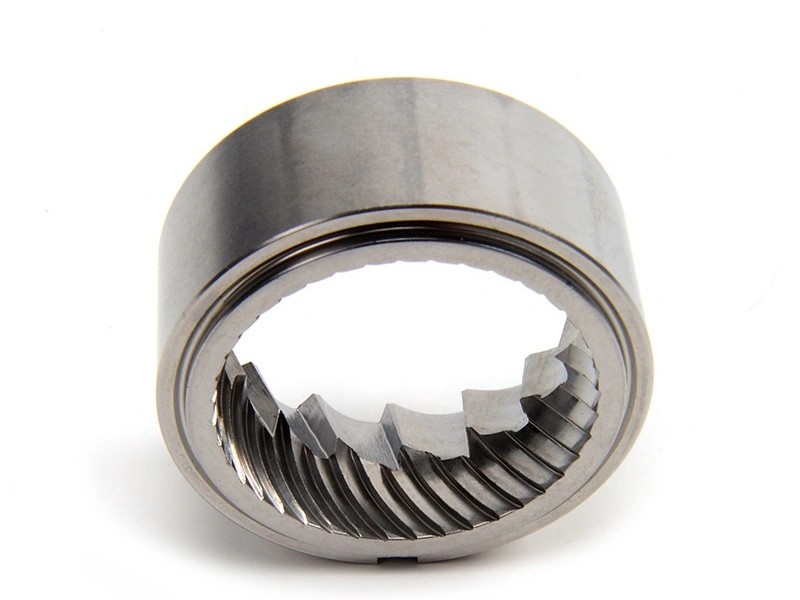

What information is needed to get a superalloy CNC machining quote?
To quote superalloy CNC machined parts on a controlled basis, provide matching 3D CAD and 2D drawing revisions, the exact material specification, product form and condition, quantity, special processes, final surface state, inspection evidence, and service conditions. A usable superalloy CNC machining quote must also state which document governs, how conflicts will be resolved, and what assumptions or exclusions the supplier used. A family name or geometry file alone cannot define material identity, final acceptance, or the operation sequence. Mark unresolved items as questions or authorized alternatives instead of allowing an unrecorded supplier interpretation.
Controlled RFQ Input | Quotation Decision It Must Support |
|---|---|
3D CAD file and revision | Establish the geometry baseline for feature access, stock removal, workholding, setups, and tool reach without overriding drawing requirements. |
2D drawing and revision | Define governing datums, tolerances, threads, surface texture, edges, special-process notes, and acceptance requirements; identify any CAD conflict. |
Exact material specification | Name the grade, specification revision, certification need, approved source limits, and whether an alternative requires written approval. |
Product form and material condition | Separate cast, wrought, forged, deposited, solution-treated, or aged supply states because stock, risk, sequence, and evidence can differ. |
Quantity and release profile | Distinguish prototype, qualification, and repeat lots so setup, dedicated tooling, inspection, material procurement, and unit assumptions are visible. |
Heat treatment and special processes | Place each treatment, HIP, coating, cleaning, or finishing step in sequence and define stock allowance, final condition, and reinspection. |
Final surface and edge state | Identify functional surfaces, roughness callouts, burr limits, contamination controls, coatings, and dimensions affected by later processing. |
Feature-level inspection evidence | Link characteristics to method, stage, sampling, report, acceptance rule, and any material, dimensional, NDT, or metallographic record. |
Service and interface conditions | Flag temperature, medium, load, wear, mating parts, and failure risks that control material, surface, cleanliness, or validation decisions. |

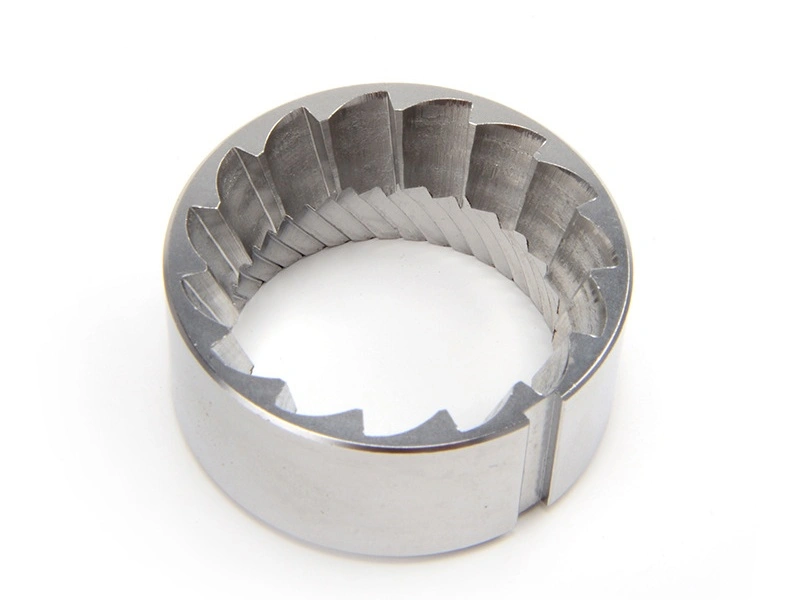

1. Quote the specified grade, product form, and condition
A superalloy family name is not a purchase specification. State the exact designation, governing specification and revision, product form, supplied heat-treatment condition, and required material certificate. Inconel, Hastelloy, Stellite, Monel, Nimonic, and Rene families contain grades and forms with different availability, stock allowance, cutting response, and acceptance needs. A casting, wrought bar, forging, or deposited wear layer can require a different route even when the family label looks similar. Identify customer-supplied material, approved sources, traceability, and whether substitutions are prohibited or require written engineering approval. The quotation should return the proposed material source and condition so the buyer can compare the offered route with the same controlled requirement.
2. Make the drawing the acceptance source of truth
The CAD model supports geometry review, but the controlled drawing defines datums, feature tolerances, threads, surface texture, edge conditions, notes, and acceptance. Send matching file revisions and state which document governs if model and drawing dimensions conflict. Use the existing CNC machining tolerances reference to frame the difference between a feature requirement and a general capability claim, not to replace the part drawing. Flag critical interfaces, sealing surfaces, thin walls, deep features, inaccessible intersections, and dimensions affected by coating or heat treatment. Require the supplier to list unresolved conflicts and proposed deviations in the quotation rather than pricing an assumed interpretation.
3. Put heat treatment and post-processing in sequence
Identify every required thermal or surface process, its governing specification, its position in the routing, and the condition in which final acceptance applies. Heat treatment, HIP, coating, cleaning, or finishing can alter stock allowance, hardness, residual stress, datum stability, surface condition, and measurable feature size. The linked hot isostatic pressing service is relevant only when the drawing or approved material route requires HIP; it is not a default quotation input for every alloy. Define who performs each outsourced operation, what records return, which features need protection, and which dimensions or integrity requirements are rechecked afterward. Otherwise, suppliers may quote different process endpoints that cannot be compared.
4. Tie inspection evidence to features and final condition
Do not request CMM, FAI, material certificates, NDT, or metallography as an unscoped list. Identify the characteristic, datum scheme, process stage, method, sampling basis, report format, acceptance rule, and final material or surface condition for each required record. The existing quality control in CNC machining page can clarify dimensional and surface evidence, while the drawing and purchase requirements remain authoritative. Service temperature, chemical medium, load, wear contact, mating material, cleanliness, and failure consequence should flag controlled features and contamination risks. These inputs inform manufacturing and validation review; they do not transfer material selection or design responsibility to the machining supplier.
5. Incomplete inputs must become visible quotation assumptions
Incomplete data does not justify a hidden allowance or an unsupported promise. If stock form, condition, tolerances, process sequence, inspection scope, or acceptance state remains open, require the quotation to state the assumed basis, exclusion, price dependency, and action needed before release. This is especially important where material procurement, dedicated tooling, outsourced processing, destructive tests, or final-state measurement changes the quoted scope. Separate prototype, qualification, and repeat quantities because their evidence and setup needs may differ. The buyer can then compare like with like, close high-risk questions before a purchase order, and prevent a low initial price from masking omitted material, processing, or inspection obligations.
6. Release one RFQ baseline and compare supplier returns
Send one indexed package containing controlled CAD and drawing revisions, material specification and condition, quantity profile, special-process sequence, final surface state, delivery basis, and feature-level acceptance evidence. The from CAD to finished part workflow helps identify routing handoffs, while a one-stop CNC machining service link does not by itself prove that every operation or acceptance record is included. Ask each supplier to return the same items: material source and condition, routing assumptions, subcontracted steps, deviations, inspection deliverables, exclusions, revision basis, and questions requiring approval. Release pricing only after those responses align with the buyer's controlled baseline.
