From CAD to Finished Part: The Complete CNC Machining Order Workflow

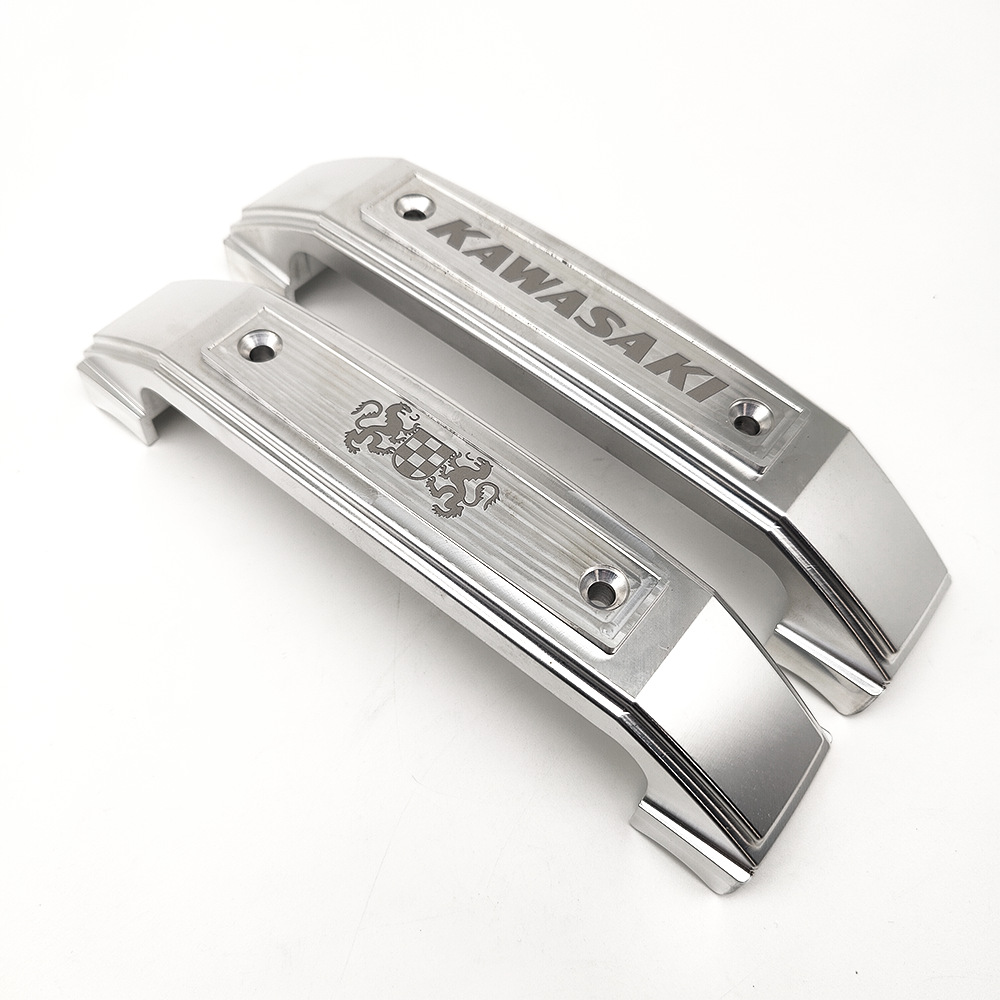

Introduction
A complete CNC machining order workflow turns a released CAD package into inspected, finished, packed, and shipped parts through controlled steps. The sequence usually includes technical review, DFM, quoting, programming, material preparation, machining, inspection, finishing, final release, and logistics. Each step needs clear buyer input because a missing drawing note, unapproved substitute material, or undefined finish can change cost, lead time, and acceptance risk. Buyers should treat the workflow as a control map. Every stage should have an input, an owner, a risk check, and a release condition. When one item is missing, the next department may work from assumptions instead of approved data.
Engineers, buyers, and project managers need the same released requirements as a custom part moves from CAD data to a finished component. A controlled CNC machining services workflow assigns each decision to a stage, identifies the evidence needed for release, and defines where supplier and buyer approval is required. The workflow protects function first, then manages cost, schedule, surface finish, documentation, and shipment. It also separates a quote-ready package from an idea that still needs design clarification. Procurement can compare supplier answers against the same gates, engineering can see where design intent may be lost, and quality teams can identify the evidence required before release.
1. CAD File Submission and Technical Review
The workflow begins with a complete technical package, not only a 3D model. The buyer should provide a 3D CAD file for geometry, a 2D drawing for tolerances and notes, the drawing revision, material grade and condition, finish requirement, quantity, inspection needs, and any assembly interfaces. STEP or native CAD files generally preserve solid geometry for manufacturing review; IGES can exchange surfaces but may require repair. PDF drawings usually carry GD&T, thread callouts, surface roughness, and special acceptance notes. During technical review, the supplier checks whether the part can be reached by planned setups, whether thin walls may move after unclamping, whether internal corners need realistic tool radii, and whether the drawing has conflicting requirements. A missing datum scheme can delay inspection planning. A missing material condition can change tool selection and lead time. Buyers should mark critical dimensions, sealing faces, press fits, cosmetic zones, and no-change features before RFQ. The review should end with clear questions, not silent assumptions. A complete package should also state revision ownership, export restrictions if relevant, and whether the supplier may suggest functional changes. If the CAD model and drawing disagree, the buyer should define which document controls. That small decision prevents quoting, programming, and inspection from following different sources.
2. Design for Manufacturability (DFM) Analysis
DFM converts the design into a manufacturable route while protecting the part’s function. The review should identify undercuts, deep pockets, thin sections, sharp internal corners, unstable datums, unnecessary tight tolerances, and features that require special tools. A good DFM comment explains the cost driver and the functional risk. For example, opening a pocket may reduce tool chatter, but changing a sealing face could require customer approval. DFM is especially important for low-volume manufacturing because the project may not justify expensive dedicated fixtures. The buyer should classify DFM suggestions as required for manufacturability, optional for cost reduction, or forbidden because the feature is function-critical. Validation can include a prototype, a first article, a datum check, or a finish trial. A workflow failure occurs when a lower-cost geometry is approved in a message but the released drawing, inspection plan, or assembly requirement is not updated. For example, thickening a flexible flange may improve machining stability while changing a mating stack or fastener grip length; the revised interface must be approved and inspected against the same revision. Strong DFM also separates tolerance need from tolerance habit. A tight tolerance on every surface increases inspection time and fixture sensitivity. A tight tolerance on a bearing seat or sealing interface may be necessary. The buyer should ask which tolerances control function and which ones can be relaxed without changing the part’s job.
3. Quoting and Lead Time Estimation
Quoting should translate the approved technical package into a route, cost structure, and planning schedule. Material type, stock size, batch quantity, setup count, tolerance class, inspection scope, finishing, packaging, and documentation all affect the quote. A part made from aluminum 7075 may have a different risk profile from a part made from Inconel 625, even when the geometry looks similar. The quote should state assumptions: approved drawing revision, material availability, substitute material rules, finish specification, inspection report level, and shipping terms. Lead time should be treated as a planning range until material and approvals are confirmed. Buyers should ask whether the estimate includes material procurement, programming, fixtures, first article inspection, finishing, post-finish inspection, certificates, and packing. A low price without these assumptions can hide late schedule changes. A useful RFQ compares total delivered risk, not only unit price. The quote should also identify items that are excluded. Examples include customer-supplied hardware, special packaging, export documents, coating certificates, or repeated inspection after a design change. Clear exclusions reduce dispute risk after the purchase order is issued.
4. CAM Programming and Toolpath Generation
CAM programming converts the accepted geometry and manufacturing route into toolpaths, setups, tools, cutting sequence, and inspection access. Programmers decide how stock is held, which datums are cut first, where roughing leaves material, and how finishing passes protect critical surfaces. For complex 3D surfaces or features that cannot be reached from three axes, multi-axis machining may reduce setups or improve tool access. It does not automatically guarantee tighter finished tolerances. Tool length, fixture rigidity, material behavior, thermal growth, and inspection strategy still matter. The programming stage should flag features that need special cutters, electrodes, probes, or extra deburring access. Simulation can reduce collision risk, but it cannot replace first-piece verification. Buyers usually do not approve toolpaths, but they should respond quickly if programming finds an impossible tolerance, inaccessible feature, or drawing conflict. Delayed answers at this stage can stop the whole order. A programming review should also consider roughing stress, tool entry marks, clamp clearance, and where burrs will form. These details decide whether the part can be inspected and finished cleanly after machining. If a feature can only be measured while the part is still in a fixture, that measurement point should be planned before the first setup is released. Otherwise a critical relationship may disappear once the part is unclamped.
5. Raw Material Procurement and Preparation
Material procurement connects the drawing requirement to actual stock. The order should define the exact grade, heat treatment or temper, form, size, certificate requirement, and whether substitute material is allowed. The supplier then checks stock availability, certificate match, heat or lot identity, and any condition that affects machining. Preparation may include cutting blanks, marking job identity, reserving extra stock for workholding, and protecting traceability through the route. Material release can stop when the drawing names a rare grade, a certificate is incomplete, or substitute approval arrives after purchasing or programming has begun. The material plan should also consider finishing. Anodized aluminum, passivated stainless steel, heat-treated alloy, and plated steel can each need different stock allowances and inspection timing. Buyers should not approve a material change based on the material name alone. The decision should compare strength, corrosion exposure, temperature, weight, finish compatibility, and documentation requirements under the actual application. Material preparation is also the first traceability checkpoint. If heat number, stock condition, or certificate identity is lost here, later inspection cannot fully restore that evidence. Buyers should state whether traceability is per part, per batch, or only by material lot.
6. CNC Machining Operations
Machining operations should follow the approved route, setup sheet, and inspection checkpoints. Depending on geometry, the process may include CNC milling, turning, EDM, or grinding. Milling handles pockets, profiles, flat faces, and many prismatic features. Turning supports shafts, bores, grooves, threads, and round features. EDM can create hard-to-machine profiles, narrow slots, or details that cutting tools cannot reach. Grinding may be used when surface finish, straightness, or tight dimensional control requires a finishing operation. Each operation has its own risk. Thin walls can distort after roughing. Deep bores can drift. Burrs can form on cross-holes. Datum shifts can occur if roughing removes stress. In-process inspection should check the features that control later operations, not only final dimensions. Buyers should ask which features are inspected during production and which are held for final release. A route can also include planned pauses. A first-piece check, tool-life review, or fixture verification may prevent a full batch from repeating the same error. That pause is usually cheaper than sorting finished parts later. Process control should also include tool replacement rules, burr review, coolant or heat control where relevant, and clear handling of nonconforming parts. A small deviation early in the route can become expensive after finishing.
7. Dimensional Inspection and Quality Control
Inspection verifies whether the machined part meets the drawing, but inspection must be planned before production. Micrometers, calipers, height gauges, thread gauges, surface roughness instruments, optical systems, and CMM equipment each fit different feature types. A CMM can verify many datum-based dimensions, but CMM use does not turn machine capability into a finished tolerance guarantee. The inspection plan should define datum setup, measurement method, acceptance criteria, report format, and whether results are required before finishing. First-article inspection may be needed when the part is new or when the contract or approved quality plan requires formal first-piece release. Aerospace, medical, or other controlled applications may also require material certificates, process certificates, or full dimensional reports when the purchase order or applicable specification calls for them. A release failure occurs when a part is finished before a critical bore or thread is measured and coating or deburring then changes the feature. Buyers should define which dimensions are final-state dimensions and which are measured before finishing. The inspection plan should also address sampling. One-off prototypes may need full reporting on every critical feature. Repeat production may use a defined sampling plan if the buyer approves it. The acceptance rule should be clear before parts are cut. Inspection evidence should be readable by the buyer’s receiving or quality team. A report that lists values without datum reference, units, revision, or method may create another review delay.
8. Surface Treatment and Finishing
Surface treatment should be integrated into the workflow before machining begins because finishing can change dimensions, appearance, corrosion behavior, friction, and cleanliness. If specified, the route may include anodizing, thermal coatings, PVD coating, or electropolishing. The buyer should identify controlled cosmetic faces, no-coat zones, masking areas, coating thickness, roughness targets, color limits, and post-finish inspection needs. Coating build-up can reduce bore size, change thread fit, or cover a datum. Electropolishing can change edge condition. Tumbling can move burrs or round small features. Heat exposure can affect distortion risk in some materials. A good workflow measures the right features before finishing, protects the right surfaces during finishing, and verifies final-state requirements after finishing. Finish certificates and visual approval should be defined before the order is released. Surface treatment also affects scheduling. Parts may wait for cleaning, masking, outside processing, cure time, or post-process inspection. The quote should show whether finishing is included in the lead time and who approves any cosmetic sample.
9. Assembly and Final Inspection
Assembly and final inspection confirm that the part is not only machined, but also usable in its intended system. Some orders require threaded inserts, press-fit components, pins, simple mechanical assembly, or matching of multiple machined parts. The workflow should define whether assembly occurs before or after surface treatment, which fits are checked, and which surfaces must not be damaged during handling. Final inspection should confirm dimensions, visual acceptance, edge condition, cleanliness, quantity, documentation, and packaging readiness. If the part mates with another component, the buyer should provide interface requirements, gauge requirements, torque limits, or functional checks where needed. A late-stage failure occurs when coating reduces clearance or a deburred edge no longer matches the assembly requirement. Final inspection should compare the finished part against the current drawing revision and approved deviations. It should also confirm that material certificates, process records, dimensional reports, and finish evidence match the order requirements before release. Final release is the last chance to catch mismatch between the purchase order and the produced part. The reviewer should check quantity, revision, material, finish, report package, and open deviations together.
10. Packaging and Logistics
Packaging and logistics protect the finished part after manufacturing evidence has been accepted. The packaging plan should match part material, surface finish, geometry, edge sensitivity, corrosion risk, and shipment method. Clean aluminum parts, polished stainless components, coated parts, and precision bores may need different wrapping, separation, caps, bags, rust prevention, labels, or handling notes. Packaging can become a quality problem if parts contact each other, if abrasive debris remains, or if moisture reaches unprotected steel. The buyer should provide shipping address, packaging rules, labeling requirements, export documents, and whether partial shipment is acceptable. Carrier tracking may show shipment movement, but it does not prove that the order met the drawing. The release package should connect final inspection, packing list, certificates, and shipment details. For repeat orders, packaging feedback should be recorded because transport damage can appear like a manufacturing defect. Good logistics close the order without disconnecting the finished part from its quality evidence. Buyers should also define how parts are identified after unpacking. Bag labels, part numbers, revision marks, and batch references help receiving teams connect physical parts to reports. That link matters when multiple revisions ship close together.
Conclusion
The complete CNC machining order workflow is a controlled chain from CAD release to finished-part acceptance. Early clarity gives the buyer control over file revision, material, tolerances, finish requirements, inspection evidence, and approval timing. A structured path helps each custom CNC part move through review, quoting, programming, material preparation, machining, inspection, finishing, assembly, and shipping with fewer hidden assumptions. The workflow does not remove engineering judgment. It makes that judgment visible before cost, lead time, or part quality is affected. For RFQ preparation, buyers should send the latest drawing and CAD file, identify critical features, state the final surface condition, list documentation needs, and define who can approve DFM or schedule questions. That creates a practical starting point for a quote whose assumptions can be checked and a production route whose release gates are visible. The next step is a workflow-based RFQ checklist. It should ask what is fixed, what may be changed, what must be inspected, what must be documented, and who can approve exceptions. Before issuing a purchase order, the buyer can use a short release screen. Are all file revisions aligned? Is material condition approved? Are substitute rules written? Are functional surfaces identified? Is the inspection method accepted? Is final surface condition defined? Are certificates required before shipment? Are exceptions owned by a named reviewer? If any answer is missing, the order may still be quoteable, but it is not workflow-ready. That screen reduces uncontrolled revision, inspection, and shipment disputes.
