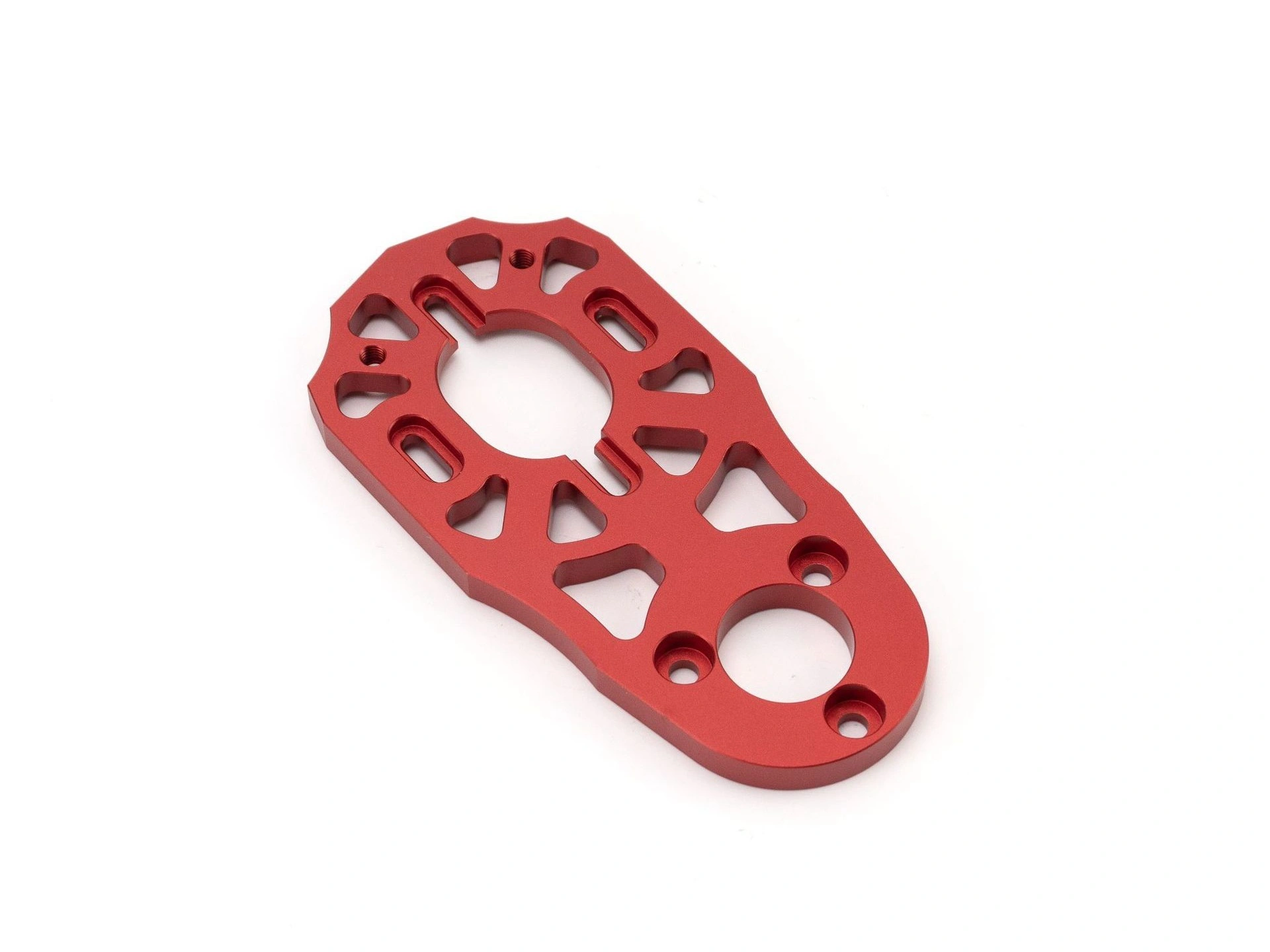

Can complex CNC milled parts maintain precision across multiple setups?
Can complex CNC milled parts maintain precision across multiple setups?
Yes, complex CNC milled parts can maintain precision across multiple setups when one datum scheme, controlled workholding, material-release planning, setup verification, and final relationship inspection govern the route. Machine or fixture repeatability alone does not prove finished-part accuracy. An RFQ should identify drawing datums, cross-face relationships, acceptance state, and required inspection evidence.
Conventional fixtures are adequate when each critical relationship is created and checked within one stable reference. Parts transferring features between faces may need precision machining controls or multi-axis machining to remove a re-clamping event. Allocate the drawing's machining tolerances among cutting, transfer, material movement, and measurement. Final quality control closes the drawing relationships.
1. Treat Setup Transfer as a Relationship Error Budget
Multiple setups create a relationship error budget, not a simple sum of deviations. Seating, locator clearance, fixture orientation, offsets, temperature, and part movement affect different directions or features. Combine random effects statistically only when independence and distributions are demonstrated; control systematic offsets and released-part movement separately.
Cross-face position, perpendicularity, and profile can fail while local sizes pass. Allocate relationship error among transfer, cutting, and measurement, with decision margin for inspection uncertainty. Final verification must use the drawing datum reference frame and specified finished-part condition.
Transfer Contributor | Relationship at Risk | Closure Evidence |
|---|---|---|
Poor seating | Datum translation or orientation | Clean, seat, and check a reference before cutting |
Fixture relocation or indexing | Cross-face position or orientation | Qualify the motion and inspect from common datums |
Offset or probe-reference error | Program origin relative to datums | Control calibration and confirm the final result independently |
Clamp load or unsupported geometry | Thin-wall profile and datum form | Compare specified restrained and released states |
Temperature change or stress release | Bore spacing, profile, and datums | Stabilize, then verify final-state dimensions |
2. Datum Transfer Must Survive Process Changes
Datum strategy reduces transfer risk only when its features remain stable, accessible, and traceable to the drawing. Each setup must constrain the required degrees of freedom without creating an uncontrolled local origin. Final inspection must use the functional datum logic, not a convenient best fit.
Roughing can release residual stress and alter an early datum. The route may stabilize the part, then re-machine or re-verify that datum before finishing related features. Use the edition named on the drawing: ASME Y14.5 covers geometric dimensioning and tolerancing, while ISO 5459 defines datums in the ISO system. Neither standard proves process capability.
3. Fixture Repeatability Supports Accuracy but Does Not Prove It
Fixture repeatability supports setup transfer, but finished-part accuracy also depends on locator condition, clamp sequence, part stiffness, cutting load, and unclamping release. A fixture may relocate a rigid artifact consistently while a thin or asymmetrical part changes shape under the same load.
Hard stops, locating surfaces, and support should constrain the intended degrees of freedom without over-constraining unstable geometry. Repeated load-and-unload trials can estimate relocation behavior. Their acceptance limit must fit the relationship error budget and remain separate from final product inspection.
Workholding Control | Evidence Before the Next Setup |
|---|---|
Clean, undamaged locating surfaces | Seating check shows contact at the intended locators |
Defined clamp direction and sequence | Loaded position remains within the allocated transfer limit |
Support matched to flexible regions | Restrained and released measurements expose clamp-induced movement |
Repeated load-and-unload qualification | Recorded results distinguish relocation variation from part deformation |
4. Probing Verifies Setup State, Not Final Accuracy
Probing can confirm accessible reference features, seating, and work offsets before cutting, but cannot certify every finished relationship. Calibration, stylus configuration, approach, surface condition, and temperature affect the observation. Hidden distortion or inaccessible features remain outside the result.
Intermediate checks can expose a wrong setup before irreversible finishing. Final relationships still require specified tight-tolerance inspection in the accepted support, temperature, and finish state. Measurement uncertainty must leave decision margin at the tolerance boundary.
5. Cross-Setup Relationships Need Their Own Validation
Cross-setup position, orientation, and profile require more control than a local size because their acceptance depends on a shared datum reference frame. Opposite-face holes, sealing planes, and blended surfaces can each pass local measurements while their functional relationship fails after datum transfer.
Create related features in one setup when reach, stiffness, and access allow. Otherwise, trace each operation to the drawing datums and define final measurement. The distinction between dimensional and geometric tolerances prevents a passed diameter or thickness from being mistaken for passed position or orientation.
Controlled Relationship | Process Decision | Final Closure Evidence |
|---|---|---|
Single-face width or bore | Finish in one stable setup | Measure final size at drawing locations |
Opposite-face hole position | Use one datum system | Common-datum CMM evaluation or authorized functional gage |
Plane perpendicularity | Preserve accessible datum features | Final result aligned to specified datums |
Profile across multiple sides | Reduce transfers or control blend finishing | Profile measurement and drawing acceptance requirement |
6. Fewer Setups Reduce Transfers, Not Every Error Source
Reducing setup count removes transfer events but does not automatically improve every tolerance. A multi-axis route still depends on rotary condition, tool reach, calibration, workholding, and temperature. Compare the complete relationship error budget and inspection plan, not only the number of clampings.
For a housing with related bores on several faces, one indexed clamping can help when access and stiffness support stable finishing. Separate fixtures may be safer when reach or support compromises that route. Select 3-axis, 4-axis, and 5-axis CNC milling from the critical relationships and their validation method.
7. Material Release Can Move the Datum Between Setups
Residual-stress release, cutting load, clamp compression, and temperature can move a datum or functional feature between setups. Aluminum plate, heat-treated steel, and engineering plastic do not share one predictable response; grade, temper, stock form, geometry, removal pattern, and time between operations all influence the result.
Movement-sensitive geometry may be roughed, stabilized as specified, then referenced from re-established finishing datums. Evaluate thin walls after unclamping in the accepted support condition. The RFQ must state material specification, stock condition, heat treatment, and when dimensions apply.
8. Route Controls and Validation Actions
Route Control | Required Validation Action |
|---|---|
Trace setups to drawing datums | Record transfer features and final alignment |
Recheck datums after roughing | Re-machine or verify before finishing |
Control locating, clamping, and support | Separate relocation from released-part movement |
Use probing for setup checks | Keep probe evidence separate from final inspection |
Group related features where practical | Verify reach, rotary effects, and common-datum results |
Define the acceptance state | Agree temperature, support, finish, method, sampling, and records |
9. RFQ Closure for Multi-Setup Precision
A credible route closes each critical relationship with a traceable datum, controlled transfer, and final acceptance method. Machine specifications, fixture repeatability, or probe results alone leave finished geometry unresolved. Review cross-face requirements before committing to setup count or inspection cost.
Provide the datum reference frame, material and stock condition, cross-face relationships, tolerance modifiers, and final finish state. Define measurement temperature and support, inspection method, sampling, and required records. Request the supplier's setup route, transfer datums, release controls, and final closure plan before production.
