What tolerances can CNC milling typically achieve?
What tolerances can CNC milling typically achieve?

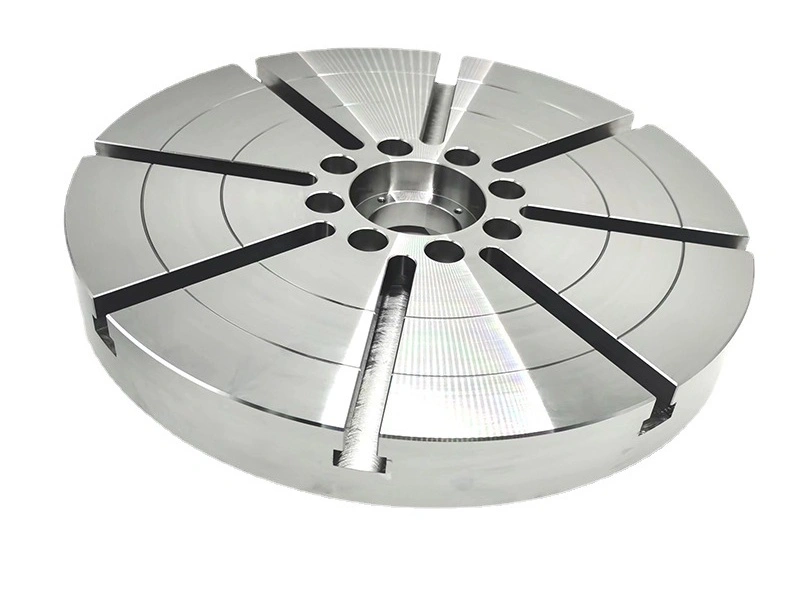

CNC milling tolerances of about ±0.05 mm to ±0.10 mm are a practical early RFQ range for many accessible, non-critical dimensions. Selected stable features can be tighter only after the feature, material, setup, thermal state, and measurement method are qualified. These values are not machine-capability or finished-part guarantees. Mark functional features and state datums, material condition, final finish, acceptance state, and inspection method.
Finished-part tolerance is not set by machine positioning accuracy, controller resolution, or CMM resolution. It is the closure result of material stress, cutter deflection, feature stiffness, tool reach, setup transfer, heat, deburring, finishing, clamp release, and measurement uncertainty. This is why precision machining strategy and machining tolerances should be reviewed before pricing.
1. Typical CNC Milling Tolerance Ranges
Tolerance Level | Early Screening Range | Buyer Check |
|---|---|---|
General commercial milling | ±0.05 mm to ±0.10 mm | Screen accessible, non-critical features; define the drawing default separately. |
Controlled production milling | ±0.02 mm to ±0.05 mm | Screen stable functional features; identify datums, material state, final finish, measurement method, and sampling. |
High-precision milling | Tighter than ±0.02 mm on selected stable features | Request only where function requires it; validate the feature-level process and inspection route before release. |
Critical feature tolerance | Project-specific after validation | Set from function and validation; define acceptance state, environment, method, and required records. |
These values are early RFQ screening references, not drawing defaults, process-capability claims, or guarantees for every milled part. A short accessible feature in stable stock is easier to control than a deep pocket, unsupported wall, or cross-setup relationship. Part size, material state, tool reach, clamp-release movement, finish state, temperature, and measurement uncertainty must be reviewed before acceptance criteria are agreed.
2. Why Some Features Can Hold Tighter Tolerances Than Others
Not every feature on one part should receive the same tolerance. External flat faces, short bores, and accessible datum surfaces are usually easier to control than deep cavities, thin walls, narrow slots, long ribs, or multi-side features that require reclamping.
A stable datum face on an aluminum component may justify a tight feature tolerance, while a tall unsupported wall on the same part may move during cutting or after unclamping. The wall should be accepted after clamp release in the specified thermal and support condition. Tolerance allocation should follow function, stiffness, access, and inspection confidence rather than applying the same small number across the model.
Feature Type | Tolerance Difficulty | Main Control Risk |
|---|---|---|
Flat datum face | Lower | Access is good; confirm flatness and datum contact after finishing. |
Short precision pocket | Moderate | Cutter diameter, corner radius, and finishing allowance set the practical limit. |
Deep cavity | Higher | Long tool overhang increases deflection, chatter, and tapered-wall risk. |
Thin wall | Higher | Cutting force, clamping pressure, and stress release can change size after machining. |
Multi-face relationship | Higher | Setup transfer and datum stack-up must be verified with a defined inspection plan. |
3. Dimensional Tolerance vs Geometric Tolerance
Dimensional tolerance limits feature size or the distance or angle between features. Geometric tolerances under ASME Y14.5 or ISO 1101 control form, orientation, location, profile, or runout. Straightness and flatness are form controls and do not reference a datum. Perpendicularity, parallelism, position, and runout establish relationships to specified datums; profile may control form alone or locate a surface when datums are referenced.
A pocket width can satisfy a ±0.02 mm size limit while its position fails relative to the drawing datums. The opposite can also occur. Assign a size tolerance to protect fit and the applicable geometric control for form or relationship; tightening size cannot replace missing datum logic. Define the datum simulator, measurement method, and decision rule in the acceptance plan. This distinction is detailed in dimensional and geometric tolerances.
4. How Material Choice Affects Achievable Tolerance
Material grade, condition, stock form, stiffness, thermal response, and residual stress influence tolerance stability. Aluminum is machinable, but thin walls can move during clamping or stress release. Austenitic stainless steels and titanium alloys need grade-specific cutting parameters, heat management, tool-wear control, and rigid workholding rather than a blanket speed rule. Engineering plastics should be measured at a specified temperature; grades with moisture-sensitive dimensions also need a defined conditioning state. Green or machinable ceramics may be milled with a suitable tool route, whereas dense fired technical ceramics commonly require abrasive grinding; conventional milling can chip edges or initiate cracks.
Match tolerance expectations to grade, stock condition, geometry, and measurement temperature. A compact Aluminum 6061 part in a defined temper is usually easier to control than a thin Ti-6Al-4V (TC4) component or a flexible POM part with tall unsupported walls. For plastics, state whether dimensions are accepted as-machined or after conditioning. For ceramics, state the green, machinable, or dense fired condition and whether grinding is allowed.
5. How Axis Selection and Setup Count Change Tolerance
Axis strategy affects feature relationships by changing how often the workpiece and datum system are transferred. Keeping related faces in one qualified setup can remove a reclamping stack. Indexing accuracy, rotary-axis error, tool reach, fixture stiffness, and thermal drift remain in the error budget.
This is why multi-axis machining can reduce setup-transfer risk on complex parts, but it does not guarantee a finished-part tolerance. For multi-face precision parts, compare one-setup access with tool deflection, rotary calibration, and probing or inspection uncertainty. Validate the actual relationship after unclamping with the drawing datum scheme; a higher-spec machine cannot replace that feature-level result.
6. Surface Finish and Tolerance Are Related
Surface texture and dimensional or geometric tolerances are separate acceptance requirements. A surface can meet size and fail Ra, or meet Ra and fail flatness, profile, or position. Cutting strategy, tool-edge condition, vibration, material, and finishing allowance affect both results, but one result does not prove the other.
Do not assign Ra 3.2 µm or Ra 1.6 µm as a general milling default. State the required roughness parameter and the drawing-standard measurement conditions, including filter or cutoff and evaluation length when applicable. When low Ra and tight geometry apply to the same face, plan sufficient finishing stock and inspect texture and geometry separately in the accepted part state. This distinction is covered further in surface roughness and quality control.
7. What Makes Tight Tolerance More Expensive
Tight tolerance raises cost when it narrows permitted variation enough to require extra process control or evidence. Cost may come from stable stock and thermal state, shorter tool reach, dedicated finishing allowance, datum-controlled fixturing, tool-life limits, in-process checks, or a lower-uncertainty inspection method. A slower feed is justified only if trials show that it reduces the relevant error; it is not an automatic tight-tolerance rule.
Reserve tight tolerance for surfaces that control fit, sealing, alignment, motion, or datum transfer. During tolerance review, non-critical dimensions can often be relaxed while functional dimensions receive an agreed process, measurement method, and acceptance record. That choice reduces unnecessary quote cost without weakening assembly requirements.
Tolerance Decision | Cost Effect |
|---|---|
Use standard tolerance on non-critical features | Lower machining and inspection cost when fit and datum function are unaffected. |
Apply tight tolerance only to functional zones | Process controls and measurement evidence focus on the features carrying assembly risk. |
Tighten all dimensions on the drawing | More process review, inspection, and possible rework without a defined functional return. |
8. RFQ Tolerance Selection Guide
Question | Screening Answer and Required Check |
|---|---|
What is a common general CNC milling tolerance? | ±0.05 mm to ±0.10 mm can screen accessible, non-critical dimensions; confirm the drawing default and process route. |
What is a common precision milling tolerance? | ±0.02 mm to ±0.05 mm can screen selected stable features; validate material, setup, datums, and measurement. |
Can CNC milling go tighter than that? | Only selected stable features after process and measurement validation; no universal lower limit applies. |
What most affects achievable tolerance? | Material state, feature stiffness, tool reach, setup transfers, datums, thermal state, and measurement uncertainty. |
For a CNC milling quote, identify each functional feature and its tolerance rather than applying one tight default. State the exact material grade and condition, drawing datums, final surface condition, acceptance temperature and support state, measurement method, and required sampling or records. The supplier can then select a process route and return a feature-level confirmation; the screening ranges above are not accepted capability.
