How Are Custom Machined Components Inspected to Ensure Fit, Function, and Reliability?

How Are Custom Machined Components Inspected to Ensure Fit, Function, and Reliability?

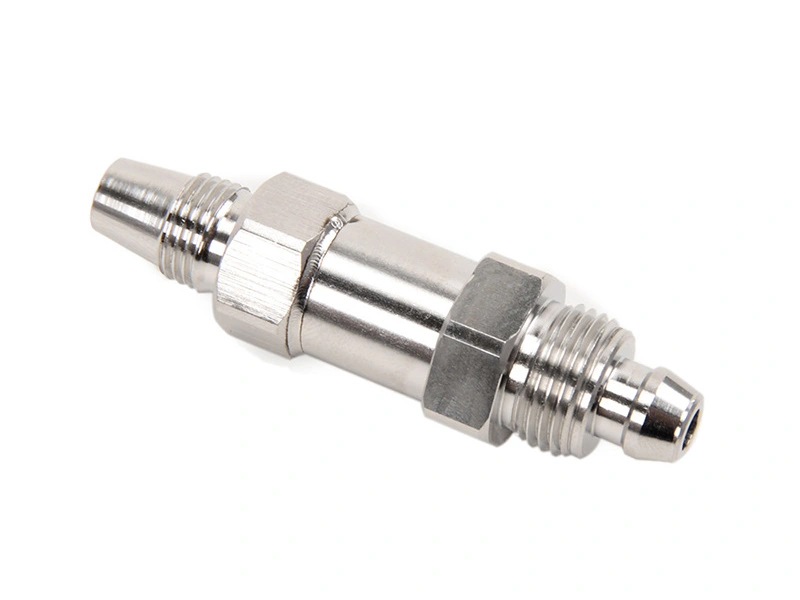

Custom machined components are inspected by linking each critical feature to the drawing revision, datum reference, final part state, measurement method, acceptance rule, and required record. Fit is verified through mating dimensions and geometric relationships. Function is verified through application-related features and, when specified, a functional gauge, assembly check, leak test, torque check, or other product test. Reliability cannot be proven by one dimensional report; it also depends on material and process traceability, controlled changes, representative production evidence, and product-level validation. Buyers should define these outputs before the CNC machining order is released.

An inspection plan should answer what is measured, in which datum setup and part state, with which method, at what frequency, and against which criterion. Public pages about quality control in CNC machining or ISO-certified CMM quality assurance for CNC machined components can help buyers form questions, but they do not establish order-specific capability. A CMM name, calibration label, or sample report cannot replace agreement on features, uncertainty, final-state acceptance, sampling, and reaction to nonconformance.

1. Inspection Starts with the Drawing and the Function of the Part

Inspection starts by converting the released product definition into a feature-level control plan. The buyer and supplier need one authority for the model, drawing, revision, units, datums, geometric tolerances, material condition, finish, and acceptance notes. Each critical-to-function characteristic should have a suitable method and record. Noncritical dimensions can use an agreed general tolerance or sampling rule. Inspecting every dimension with the same effort can increase cost without controlling the real assembly risk.

A useful plan also identifies the point in the process when evidence is valid. Heat treatment, stress relief, anodizing, plating, polishing, blasting, or coating can change size, geometry, edge condition, roughness, or appearance. A result measured before an affecting operation cannot release the final part. The RFQ should state final-state characteristics, report format, sampling, required certificates, gauge or functional test, retention period, and who can approve deviations. This prevents inspection from becoming an undocumented end-of-process sorting step.

2. Dimensional Inspection Confirms Whether the Part Will Actually Fit

Dimensional inspection confirms fit only when size and geometric relationships are measured from the same functional datum scheme used by the design. A bearing shaft can meet both seat diameters yet bind in assembly if the seats are not coaxial to the specified axis. A bolt pattern can meet individual hole sizes yet miss the mating part if true position is evaluated from the wrong datum. The plan should therefore cover feature size, location, orientation, form, and runout only where each characteristic affects the interface.

Measurement conditions matter. Temperature, support, clamping force, probe strategy, surface cleanliness, burrs, and flexible geometry can change the result. A thin or long part may move after unclamping, while a soft seal surface can be marked or distorted by contact. Buyers should identify the assembly-critical condition and require a method capable of resolving the tolerance with suitable uncertainty. A passing number from an unsuitable setup is not evidence that the part will fit.

3. What Is the Difference Between Inspecting Functional Surfaces and Appearance Surfaces?

Functional surfaces are accepted against measurable requirements tied to sealing, bearing, sliding, locating, clamping, electrical, thermal, or fluid performance. Relevant controls can include size, form, orientation, position, roughness, waviness, edge condition, cleanliness, or coating state. The method must match the feature. A visual check cannot establish bore size or flatness, while a dimensional report alone cannot establish leakage, friction, or contact behavior unless the design has defined that relationship.

Appearance surfaces are accepted against a separate visual standard. The drawing or purchase specification should identify visible zones, allowed tool pattern, color or texture range, edge quality, reference sample, lighting, distance, viewing angle, and handling defects. Terms such as good finish or no scratches are too subjective for consistent release. Cosmetic acceptance should also occur after the final finish, cleaning, marking, and packaging sequence that can change the visible condition.

A part may pass functional inspection and fail appearance acceptance, or pass appearance review while failing a critical interface. The two decisions should remain separate in the report and nonconformance process. Combining them into one pass/fail note hides the reason for rejection and makes corrective action weaker. Buyers should state which surfaces are functional, cosmetic, both, or noncritical so the supplier can plan controls before machining and finishing.

4. How Is CMM Used to Inspect Custom Machined Components?

A coordinate measuring machine is useful for datum-related positions, orientations, profiles, bores, planes, and complex feature relationships that are difficult to verify with a single manual tool. The CMM program must align the part to the drawing's datum reference frame, use an appropriate probe and point strategy, and report the specified characteristic. Machine resolution or calibration status does not become a finished-part tolerance guarantee. The measurement result also needs suitable uncertainty for the acceptance decision.

CMM inspection can still fail to represent function if the part is poorly supported, a flexible wall deflects, the wrong datum simulators are used, or a coating-sensitive feature is measured before finishing. A functional gauge or assembly check may better represent some interfaces, while surface texture needs a different instrument. Buyers reviewing CMM quality assurance information should request the ballooned feature list, method, datum alignment, result format, sampling, and nonconformance rule for their own part.

5. How Are Gauges and Manual Tools Used in Daily Inspection?

Gauges and manual tools provide efficient evidence when their contact geometry, range, resolution, force, access, and operator method suit the feature. Micrometers can measure accessible outside sizes. Bore gauges compare internal diameters and can reveal taper when used correctly. Plug or thread gauges make a defined attribute decision. Height gauges can evaluate features from a surface plate setup. Calipers are useful for general checks but are rarely the best method for a tight critical characteristic.

A layered inspection plan may use in-process gauges to control drift, a CMM for related geometry, and a functional gauge for assembly behavior. The sequence should be chosen by risk and evidence need, not by an assumption that one device is always superior. Calibration is necessary but not sufficient. For critical or high-volume measurements, buyers may require method validation or measurement-system analysis appropriate to the decision. The reaction plan should state what happens when a gauge detects drift or a result approaches the acceptance boundary.

6. How Is Visual Inspection Used for Custom Machined Components?

Visual inspection verifies observable conditions such as burrs, edge damage, scratches, dents, contamination, discoloration, coating defects, incomplete masking, corrosion, and packaging damage. It is useful only when the acceptance rule is defined. Viewing distance, lighting, magnification, reference sample, surface zone, defect size, and finish state can change the decision. Inspectors should not infer internal cleanliness, dimensional conformance, roughness, or material identity from appearance alone.

Visual checks should occur at the process points where defects can be found and contained. Burrs may be checked after machining and again after outside processing. Cosmetic surfaces may need protection before transfer and a final check after cleaning and packaging. A sealed passage can require a borescope or cleanliness method rather than unaided viewing. The report should identify the inspected state and criterion. This makes a visual rejection reproducible and connects it to corrective action instead of personal judgment.

7. How Is Material Verification Handled for Custom Components?

Material verification confirms identity, grade, condition, and traceability to the level required by the purchase specification. The control may begin with supplier and heat or lot records, receiving identification, segregation, and transfer of traceability through cutting and machining. Depending on application risk, the order may also require positive material identification, hardness, heat-treatment records, or other tests. These are selected requirements, not universal evidence for every custom part.

Material evidence must connect to the shipped part and revision. A certificate with no lot link cannot prove which stock was machined, and positive material identification may distinguish alloy chemistry without proving heat treatment or mechanical properties. The buyer should state allowed substitutions, marking, report content, and retention before production. The linked page on material certification and traceability support can frame the discussion, but the purchase order must define the required evidence.

8. How Do Inspectors Check Fit, Function, and Reliability Differently?

Inspectors verify fit with mating dimensions, datum relationships, geometric controls, and suitable assembly or functional gauges. They verify function with characteristics and tests tied to the part's role, such as thread engagement, seal integrity, torque transfer, flow, motion, electrical contact, or clamping. Reliability is different. It combines design validation, material and process control, traceability, representative production results, nonconformance response, and durability evidence defined by the product owner.

A single part can therefore need three separate release questions. Does it assemble within the specified interface? Does it perform the defined function in the tested condition? Is there evidence that the design and controlled process can sustain the required service and repeat production? Passing a CMM report answers only the characteristics on that report. Buyers should specify acceptance records, functional tests, sampling, change triggers, and product-level reliability evidence without asking inspection to prove what the design validation has not defined.

9. Summary

Custom machined components are inspected through a drawing-driven plan that links critical features to datums, final part state, suitable methods, acceptance rules, sampling, and records. Dimensional and geometric evidence supports fit. Surface, edge, thread, seal, or product tests support the defined function. Material identity, process history, traceability, representative production evidence, controlled changes, and design validation contribute to reliability. None of these evidence types should be substituted for another without an approved engineering basis.

Before issuing an RFQ, buyers should provide the released files, revision authority, critical-feature list, final finish, material and traceability requirements, functional tests, report scope, sampling, visual standard, deviation authority, and revalidation triggers. Select CMM systems, gauges, surface methods, visual checks, or functional tests according to the characteristic, not as a generic equipment checklist. A controlled CNC machining inspection plan should tell the buyer exactly what each result proves and what remains outside that evidence.
