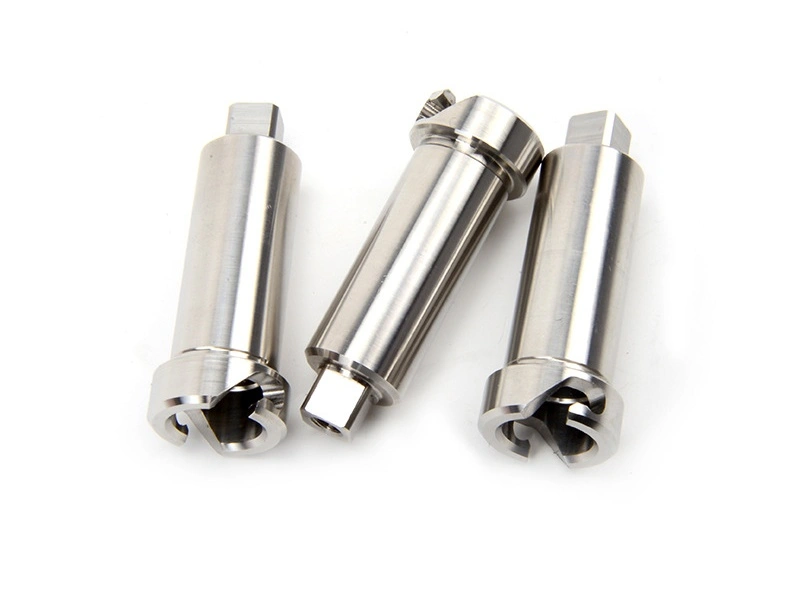

For a CNC prototype machining quote, provide a 3D solid, controlled drawing, revision, material condition, quantity, finish, critical characteristics, inspection deliverables, and test purpose. The data package should also state which document controls when the model, drawing, purchase note, or sample conflicts. A useful CNC prototype machining quote should return the proposed process route, assumptions, exclusions, deviations, outside operations, inspection scope, lead-time dependencies, and recurring versus nonrecurring costs. Geometry alone may support a budget estimate, but it cannot define threads, tolerances, surface condition, acceptance, or production intent. Mark unknown requirements as open decisions instead of allowing each supplier to guess. This gives engineering and procurement comparable quotations and exposes missing information before programming, material purchase, or finishing begins.

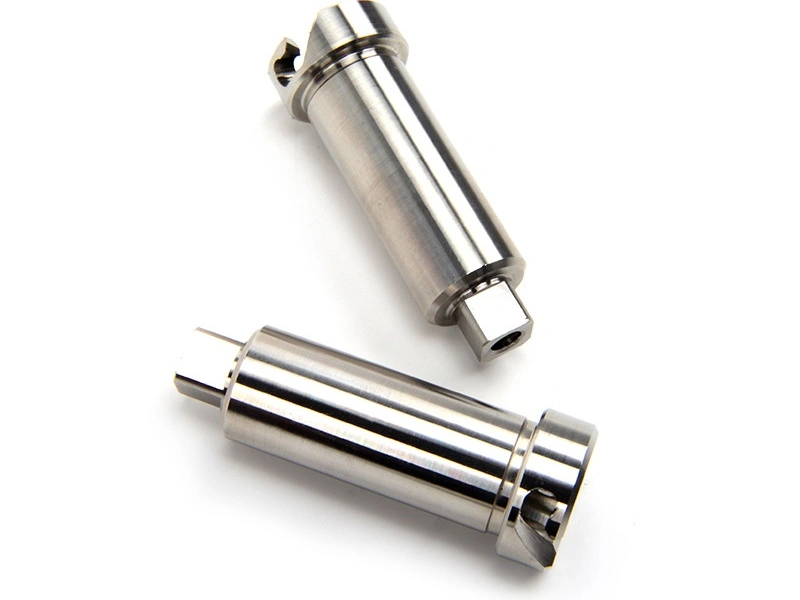

File / Information | What the Supplier Needs to Confirm |
|---|---|
3D solid model | Send the native CAD when practical plus STEP, STP, Parasolid, or another agreed neutral solid. The supplier should use it to review geometry, tool access, setup count, stock size, workholding, and collision or reach risks. |
Controlled 2D drawing | Identify revision, units, datums, dimensions, geometric tolerances, threads, fits, roughness, edge requirements, notes, and acceptance criteria. State whether the drawing overrides the model and how conflicting requirements must be reported. |
Material specification | Define grade, temper or heat-treatment condition, product form, stock-direction restrictions, required traceability, approved equivalents, and prohibited substitutions. Family names such as aluminum or plastic are not sufficient for a firm technical quote. |
Quantity and delivery scenario | State prototype quantity, optional repeats, lot splits, target date, partial-delivery rules, and likely follow-on volume. These inputs change setup allocation, inspection planning, material purchase, scheduling, and whether temporary or reusable workholding is appropriate. |
Surface and finishing requirements | Specify process, standard or buyer requirement, color or appearance class, masking, rack or contact limits, cosmetic zones, pre-finish allowance, and whether dimensions and roughness apply before or after final treatment. |
Critical characteristics | Mark features that control fit, seal, motion, load, safety, or the current experiment. Provide mating-part, gauge, or interface information when drawing limits alone do not explain how a feature will be evaluated. |
Inspection and records | Define first-piece, full, or sampled inspection; report format; measurement state; datum simulation; material or process certificates; calibration expectations; and any buyer-specific approval. Equipment names alone do not define an acceptance method. |
Application and test purpose | Explain what the prototype must prove, the load or environment, mating hardware, pass and fail criteria, and which requirements may be relaxed. This prevents cost-saving assumptions from invalidating the intended test. |
1. A solid 3D CAD file is the starting point
A solid model should represent the geometry being quoted and carry a clear filename, part number, revision, and unit system. Neutral formats such as STEP or Parasolid usually preserve analytic faces and editable geometry better than a triangle mesh. Sending the native file can help when imported features, configurations, or model-based definitions require clarification, but the supplier should not assume hidden CAD metadata is an approved requirement. Remove suppressed alternatives and obsolete configurations from the released package, or label them clearly. If an assembly is relevant, identify supplied, purchased, and reference-only components and include the mating geometry needed for access or fit review. Ask the supplier to confirm which file it used, identify unreadable or repaired geometry, and return any proposed split, setup, or access-driven change before pricing is treated as firm.
2. A 2D drawing is needed for accurate quoting
The drawing establishes requirements that geometry alone cannot communicate. It should define datums, tolerance zones, thread forms, fits, surface texture, edge breaks, finish notes, material condition, inspection requirements, and revision authority. Establish a source-of-truth rule: for example, the model controls nominal geometry while the drawing controls tolerances and notes. Require a written query when the sources disagree instead of allowing the supplier to choose the cheaper interpretation. Review CNC machining tolerances in the context of function, datum simulation, part condition, and measurement access. Blanket tight tolerances can add setups, finishing allowance, inspection time, and risk without improving the current test, while an omitted fit or datum can make a low quotation unusable.
3. Material, finish, and inspection directly affect the quote
Material must include grade and condition because stock availability, cutting behavior, distortion risk, traceability, and test validity can change within a broad family. Finishing needs the exact process or performance requirement, cosmetic boundary, masking, contact limits, color control, and final acceptance state. The supplier should identify allowance, outsourced steps, transport, minimum charges, and dimensional checks that occur after treatment. The linked overview of CNC machined parts surface finishes can frame process questions, but the RFQ must still state the order-specific condition. Inspection scope should name characteristics, method constraints, sampling, reports, and certificates. Request separate quotation lines when optional reports or finishes might be removed, so commercial comparison does not silently change the accepted part.
4. Critical dimensions and test purpose help the supplier review correctly
A prototype quote should protect the features that determine the next engineering decision. Mark sealing faces, bearing seats, threads, alignment datums, thin walls, electrical contacts, optical zones, or other interfaces that affect the test. State mating parts, loads, temperature, fluid, torque, motion, or assembly sequence where relevant. Use DFM for CNC machining as a structured review, not permission to alter requirements without disposition. Ask the supplier to separate mandatory requirements, recommended changes, assumptions, and open questions. Each deviation needs its affected feature, technical reason, cost or schedule effect, proposed validation, and buyer decision. This lets a quote reduce noncritical cost while preserving the evidence the prototype was ordered to produce.
5. STL files are usually not ideal for precision CNC RFQ
An STL describes a faceted surface and normally lacks exact analytic geometry, feature definitions, units, threads, datums, tolerances, materials, and finish requirements. Tessellation can make cylinders, holes, and curved surfaces ambiguous, while a visually smooth mesh may still be unsuitable for accurate toolpath or inspection planning. If STL is the only available geometry, state units and intended scale, provide a drawing or measurement reference, identify which surfaces are approximate, and authorize any required model reconstruction separately. The supplier should return whether the file supports a budget estimate, needs repair, or requires a controlled solid before a firm quote. Do not let an automatically converted mesh become the new design authority without buyer verification, because geometry repair can change size, alignment, wall thickness, or functional interfaces.
6. The best way to reduce quote delays
Release one named RFQ package containing the current CAD, drawing, revision record, material, quantity scenarios, finish, inspection, test purpose, schedule, shipping assumptions, and commercial instructions. Remove obsolete attachments and state a single contact for technical clarifications and a separate approval authority when needed. Require the supplier to return file identities, assumptions, exclusions, DFM questions, proposed route, outside processes, inspection scope, tooling ownership, lead-time dependencies, and cost breakdown. That response creates a controlled handoff from from CAD to finished part instead of relying on email fragments. For projects with machining, finishing, inspection, and delivery under one commercial scope, define the same ownership and returned evidence for the one-stop CNC machining service. Freeze the accepted package before purchase and route later changes through revision and re-quotation, so speed does not replace control.
