Precision Machining for Oil & Gas: How Tight Tolerances Protect Equipment Reliability

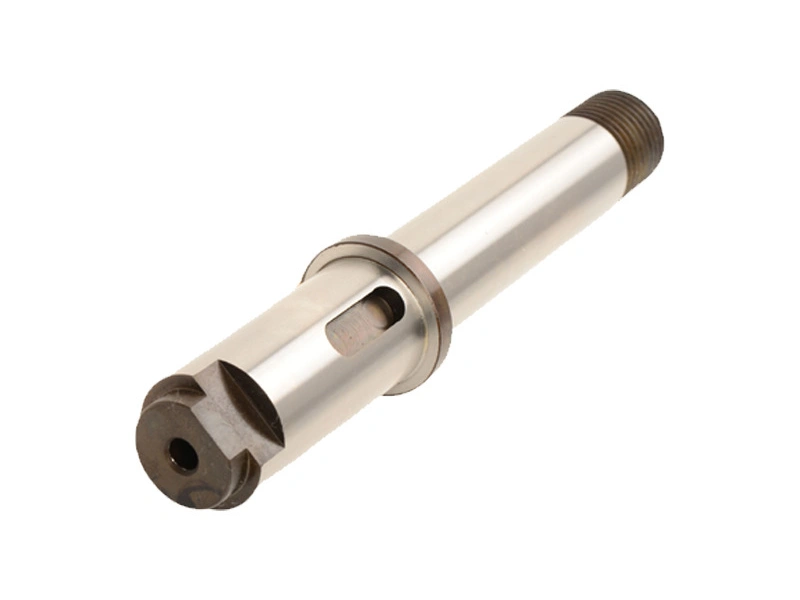

Tight tolerances protect equipment reliability in the oil and gas industry when they control the functional relationships that contain pressure, guide flow, maintain preload, align moving parts, and preserve seal contact. Tighter limits on unrelated dimensions add cost without closing those failure paths. A reliable precision machining plan therefore begins with feature function, material and process state, datum logic, acceptance method, and final-use risk rather than one general tolerance note.
For a buyer, the decision is not whether every dimension can be made small on a capability chart. The decision is whether the supplier can identify critical characteristics, keep them stable through roughing, heat treatment, coating, finishing, deburring, cleaning, and handling, then produce traceable final-state evidence. Seal geometry, port intersection, thread relationship, wall condition, and assembly stack often matter more than an isolated size. The RFQ should separate design requirements from supplier process controls and state who may approve a deviation.

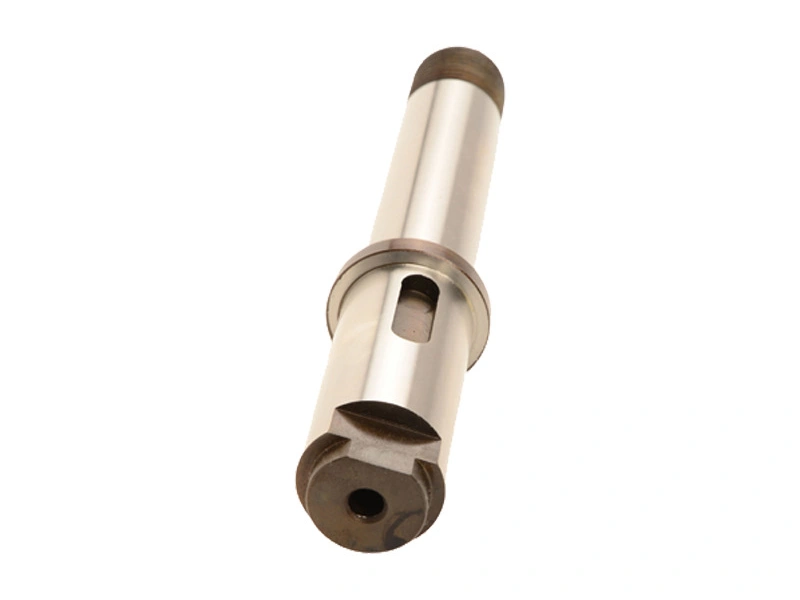

Why Precision Matters in Oil & Gas Machined Parts
Precision matters because small geometric or surface changes can alter the load and fluid paths in oil and gas hardware. Pressure, temperature cycles, vibration, abrasive particles, corrosive media, make-and-break assembly, and wear can magnify a local error. A face may lose contact, a bore may side-load a stem, or a port may leave too little wall at an intersection. The relevant tolerance is the one that prevents the defined failure while remaining measurable in the specified material, restraint, temperature, and final process state.
Material condition changes that control plan. Stainless steels, nickel alloys, titanium alloys, and high-strength low-alloy steels respond differently to cutting heat, work hardening, residual stress, tool wear, grinding, and coating. Thin walls can move after unclamping; heat treatment can change size and form; plating or other coatings can reduce a bore or thread allowance. A supplier must connect stock certification, setup strategy, tool control, intermediate checks, outside processing, final cleaning, inspection, and release. Machine accuracy alone cannot establish part conformity.
Critical Features That Drive Reliability in Oil & Gas Components
Sealing Surfaces
Sealing surfaces drive reliability through contact geometry and surface condition, not through roughness alone. Flat faces, conical seats, gasket lands, O-ring grooves, bore seals, and valve seats may require size, form, orientation, profile, width, edge, texture, lay, waviness, damage, and cleanliness controls. A single roughness trace cannot characterize a complete seal track. The specified seal design, mating material, pressure, fluid, temperature, assembly load, coating, and motion determine which characteristics matter. Inspection must occur after the last operation that can move, coat, scratch, polish, or contaminate the area.
Flow Passages and Critical Holes
Flow passages and critical holes need coordinated control of size, form, depth, straightness, location, orientation, intersection, edge condition, minimum wall, and internal cleanliness. A correct entry diameter does not show whether a long drill wandered or whether two passages overlap as intended. Breakthrough can leave a burr that detaches later, while an offset cross-hole can restrict flow or weaken a pressure boundary. External coordinate measurement, bore measurement, optical or borescope review, wall verification, cleaning evidence, and functional testing each cover different risks. The method set must match access and drawing acceptance.
Threads and Connection Features
Threads protect reliability when their complete interface is controlled to the designation and standard invoked by the drawing. Functional gauges are useful for the boundary defined by the applicable gauge practice, but they do not automatically report pitch diameter, lead, flank form, taper, root condition, damage, axis relation, shoulder location, coating, or cleanliness. Pressure or tapered threads also depend on the authorized reference location and sealing system. Finish, lubricant, material pair, contamination, engagement, and assembly procedure affect torque, so a torque result cannot replace geometric and surface evidence.
Coaxiality and Datum Relationships
Coaxiality and datum relationships describe how bores, journals, seal diameters, threads, faces, and ports work together, but the drawing must define the actual geometric control. Concentricity, position, circular runout, total runout, cylindricity, and coaxial alignment are not interchangeable labels. The selected control, datum reference frame, material-boundary modifiers, free or restrained state, and evaluation rule determine acceptance. A convenient best-fit alignment can hide a functional datum error. Buyers should review the mating stack and require a measurement strategy that simulates the intended references without distorting the part.
Critical Feature | Why It Matters | Main Precision Requirement | Failure Risk if Poorly Controlled |
|---|---|---|---|
Seal face, seat, land, or groove | Creates and maintains the specified mating contact under assembly and service conditions | Drawing-defined size, form, orientation, profile, texture, lay, edge, coating, damage, and cleanliness | Uneven preload, seal damage, local leak path, extrusion, wear, or unstable pressure retention |
Port, passage, bore, or intersecting hole | Maintains flow continuity, wall integrity, fitting alignment, and internal cleanliness | Size and form by section, datum location, orientation, depth, intersection, edge, wall, and debris control | Restriction, passage mismatch, released burr, weak wall, side load, leakage, or contamination |
Thread, taper, shoulder, and entry system | Controls engagement, preload, alignment, pressure interface, and service disassembly | Invoked gauge boundary plus actual form, lead, taper, axis, surface, coating, and related-feature evidence as specified | False torque, galling, poor engagement, weak preload, misalignment, mating damage, or leakage |
Datum-related bore, journal, face, and seal stack | Controls motion, contact, clearance, runout, load transfer, and assembly alignment | Correct geometric control, datum simulation, modifier handling, restraint, temperature, sampling, and uncertainty | Uneven wear, binding, vibration, poor contact, clearance loss, assembly stress, or early failure |
How Turning, Drilling, and Grinding Work Together for Precision
Turning, drilling, and grinding protect reliability when the route assigns each feature to a suitable process and preserves the datum and material state between operations. CNC turning can establish rotational relationships, CNC drilling creates ports and passages, and CNC grinding may finish selected hardened or surface-critical features. None of those process names guarantees tolerance. Route capability depends on stock, access, tool and fixture condition, thermal control, allowances, intermediate verification, later operations, and final inspection.
CNC Turning for Rotational Precision
Turning suits shafts, stems, sleeves, connector bodies, seal diameters, faces, tapers, grooves, and external threads when the part can be supported without unacceptable distortion. Machining related diameters and faces in one setup can reduce datum transfer, but chucking force, slender-part deflection, interrupted cuts, tool wear, thermal growth, and residual-stress movement remain. Thin sections should be evaluated after release from the fixture. If heat treatment, coating, or grinding follows, rough and finish allowances must protect the later datum and surface requirements rather than merely achieve an early in-process size.
CNC Drilling for Flow Path and Port Accuracy
Drilling establishes a hole but may not finish every requirement. Drill wander, deflection, runout, chip packing, exit damage, heat, and intersection geometry can affect straightness, position, wall, burrs, and finish. Boring, reaming, honing, threading, counterboring, or another operation may control the final feature when the design requires it. Cross passages need a planned sequence for breakthrough, deburring, flushing, and internal review. A machine position or drill diameter does not prove the released hole; acceptance must use the drawing datum and a method capable of seeing the relevant section or relationship.
CNC Grinding for Finish and Final Size Control
Grinding can finish hardened diameters, journals, seal lands, faces, and wear surfaces when the required size, form, or texture justifies the added process. Wheel specification and condition, dressing, stock allowance, speed, feed, coolant, support, and thermal stability affect burn, tensile damage, chatter, lay, taper, size, and form. Grinding is not automatically superior to cutting for every feature. The route should use it where the design and material state require its capability, then verify surface integrity and geometry after the part has reached the defined temperature and restraint condition.
Process | Best Precision Role | Typical Oil & Gas Features | Main Reliability Contribution |
|---|---|---|---|
CNC turning | Build related rotational sizes, faces, grooves, tapers, and threads from a controlled setup | Valve stems, sleeves, connector bodies, seal diameters, shoulders, and journals | Reduces unnecessary datum transfer while managing deflection, chuck distortion, tool wear, and post-unclamp movement |
CNC drilling | Create accessible hole paths for later size, form, thread, intersection, edge, and cleaning controls | Ports, pilot holes, cross passages, bolt patterns, instrument connections, and internal channels | Protects flow and wall relationships when wander, breakthrough, burrs, chips, and internal coverage are controlled |
CNC grinding | Finish selected hardened or surface-critical geometry after earlier processes stabilize the part | Seal lands, journals, hardened wear diameters, seats, faces, and suitable precision bores | Refines required size, form, and texture while controlling burn, chatter, thermal damage, lay, and residual stress |
What Tolerances Matter Most in Precision Oil & Gas Parts
The tolerances that matter most are those linked to a credible leakage, flow, preload, motion, wear, pressure-boundary, or assembly failure. Bore size may control clearance, but form and straightness can still bind a guided component. Face flatness may control contact, while orientation to a bore controls how the seal loads. Position can locate a port without proving its size, internal edge, or cleanliness. Surface texture can influence sealing or sliding without proving wider waviness or form. Buyers should use functional stacks and failure analysis to allocate limits, not tighten every dimension equally.
Consider a valve connector with a turned seal diameter, a threaded connection, an intersecting drilled port, and a ground guide journal. Holding each isolated size does not protect the assembly if the thread axis tilts the connector, the port leaves a burr near the seal, or the journal moves after unclamping. The decision model should assign the seal, axis, port, and journal to common datums where function requires it. It should then define final-state form, orientation, location, edge, texture, and cleanliness evidence. During contract review, identify which feature establishes the process reference, which characteristics can change after each operation, and which results must be actual values rather than pass/fail attributes. If a supplier proposes another control or datum route, engineering should confirm that it protects the same failure boundary before the quotation becomes an order. This is an illustrative engineering scenario, not a Neway customer case or capability claim.
Common Failure Risks in Precision Oil & Gas Machined Parts
Common failure risks arise when a critical feature changes after it was measured, when the chosen method cannot see the failure mode, or when upstream process drift affects several characteristics together. Tool wear can enlarge burrs and alter texture or thread form. Fixture or datum error can shift ports, faces, and axes. Cutting heat and residual stress can move a thin wall after release. Coating, cleaning, repair, or handling can change final size and surface condition. Actual defect frequency must come from the specific supplier, part family, process route, and nonconformance data rather than a generic ranking.
The control plan should connect each risk to a prevention signal, in-process check, final method, frequency, reaction, and record. When a trend or failure occurs, containment must extend back to the last verified state and include other characteristics sharing the same cause. Sorting visible defects is not enough if drill wear, fixture seating, thermal drift, gauge condition, or an outside process remains uncontrolled. First-article evidence applies to the identified sample and setup. Production release still needs the agreed sampling or complete coverage, actual results where required, traceability, and approved closure of every deviation.
Common Defect | Where It Occurs | Typical Cause | Possible Field Effect |
|---|---|---|---|
Form, texture, lay, scratch, dent, or edge damage | Seal tracks, seats, grooves, guide surfaces, bores, and pressure faces | Tool or wheel condition, vibration, chips, polishing, coating, cleaning, or handling | Uneven contact, seal damage, friction change, wear, trapped media, or leakage under applicable conditions |
Burr, chip, or poor breakthrough condition | Drilled exits, cross-hole intersections, thread entries, grooves, and internal passages | Tool wear, drill exit, chip packing, inaccessible deburring, or incomplete cleaning | Seal cutting, blocked movement or flow, contamination, released debris, or local wall damage |
Thread boundary, form, taper, lead, or axis error | Connectors, adaptors, valve hardware, pressure interfaces, and mating shoulders | Wrong designation or gauge, tool wear, misalignment, chip damage, or coating allowance error | False torque, weak engagement or preload, galling, misaligned seal load, mating damage, or leakage |
Datum, position, runout, form, or clearance relationship error | Rotational stacks, guided interfaces, port patterns, seal diameters, and mounting faces | Fixture seating, setup transfer, incorrect datum simulation, best-fit masking, restraint, or inadequate sampling | Binding, side load, uneven wear, vibration, passage mismatch, poor contact, or assembly stress |
Size or form change after an accepted operation | Thin walls, long bores, heat-treated features, coated threads, ground diameters, and repaired zones | Residual stress, unclamping, heat treatment, grinding heat, coating buildup, repair, or temperature difference | Final-state misfit, clearance loss, seal distortion, datum shift, unstable assembly, or rejected hardware |
Inspection Methods for Sealing Surfaces, Threads, and Critical Holes
Inspection methods must be selected by characteristic and access because no general report proves every critical feature. Dimensional instruments and coordinate methods can address suitable size and datum relationships; profilometry addresses specified texture traces; functional gauges address defined boundaries; optical or visual methods address visible damage and edges. Borescopes extend access but do not measure every hidden surface accurately. Leak, pressure, torque, or flow tests verify behavior only under the documented setup and acceptance limit. Measurement uncertainty, temperature, restraint, sampling, calibration status, program revision, and final process state affect the validity of each result.
A useful supplier review maps the drawing characteristic to the prevention control, inspection method, actual or attribute result, frequency, equipment or gauge, record, reaction, and approval owner. The buyer should request the released drawing and invoked standards, material and heat condition, coating and cleanliness state, critical-feature list, datum and restraint rules, thread and edge requirements, functional-test envelope, sampling basis, document format, and deviation authority. Review method capability at the characteristic level. A CMM certificate does not show that a probe can reach the feature, and a calibrated gauge does not show that its boundary matches the drawing. The quality agreement should define how measurement uncertainty, disputed or borderline results, remeasurement, rework, concession, and final release are handled. Representative redacted evidence can show whether the supplier understands comparable access and reporting, but it cannot replace order-specific results.
Conclusion
Precision machining protects oil and gas equipment reliability by controlling the feature relationships that determine sealing, flow, preload, motion, wear, assembly, and pressure integrity. Tight tolerance is useful only when it is function-based, achievable in the specified material and final process state, and paired with a capable acceptance method. The strongest route connects turning, drilling, optional grinding, deburring, outside processing, cleaning, inspection, nonconformance control, and release without treating any machine or certificate as an automatic product guarantee.
Use the oil and gas industry page to define the application context and the CNC machining services page to review the available process route. Before quoting, identify the critical failure chains, final-state characteristics, required actual data, test conditions, sampling, and acceptance owner. That preparation lets engineering and purchasing compare suppliers on a defined control plan rather than on unsupported claims about universal tight tolerance.
