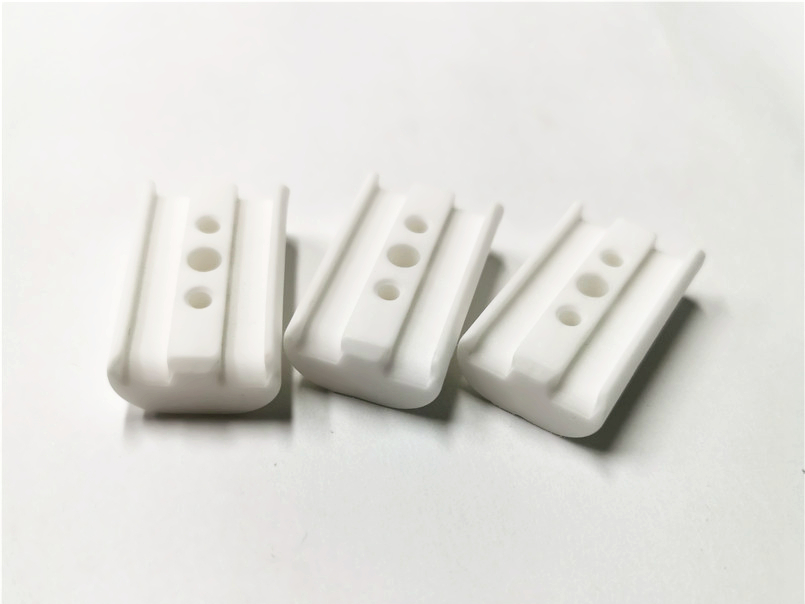

CNC Milling of Ceramic Components for Power Generation Isolation Accessories
Introduction
The Power Generation industry relies on advanced materials to ensure the safety and reliability of electrical isolation accessories under extreme operating conditions. Ceramic components, favored for their outstanding electrical insulation properties, thermal stability, and mechanical durability, are integral to isolators, insulators, and other protective equipment in power systems.
Precision manufacturing using CNC milling services is essential to meet the strict dimensional tolerances and intricate geometries required by ceramic isolation accessories. CNC milling ensures consistency and accuracy, significantly enhancing performance and longevity in demanding power generation environments.
Ceramic Materials
Material Performance Comparison
Ceramic Material | Compressive Strength (MPa) | Dielectric Strength (kV/mm) | Max. Operating Temp (°C) | Typical Applications | Advantage |
|---|---|---|---|---|---|
2000-2600 | 15-25 | 1700 | Insulator bushings, isolator supports | High dielectric strength, excellent mechanical strength | |
2000-3000 | 9-12 | 1000 | Structural insulators, connectors | Superior fracture toughness, excellent mechanical wear resistance | |
3000-3500 | 15-20 | 1200 | High-voltage isolators, turbine isolators | Exceptional thermal shock resistance, high mechanical strength | |
2000-2500 | 17-22 | 1100 | Heat sinks, isolation substrates | High thermal conductivity (>170 W/m·K), excellent electrical insulation |
Material Selection Strategy
Selecting ceramics for power generation isolation accessories involves careful consideration of application requirements:
High voltage insulation and mechanical strength: Choose Alumina (Al₂O₃) for optimal dielectric strength and reliability.
Structural components subject to mechanical stress: Opt for Zirconia (ZrO₂) due to its high fracture toughness and durability.
Components exposed to rapid temperature fluctuations: Use Silicon Nitride (Si₃N₄) for superior thermal shock resistance.
High thermal management applications: Select Aluminum Nitride (AlN) for its exceptional thermal conductivity and insulating performance.
CNC Milling Processes
Process Performance Comparison
CNC Milling Technology | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Complexity Level | Typical Applications | Key Advantages |
|---|---|---|---|---|---|
±0.02 | 1.6-3.2 | Medium | Simple ceramic insulators, spacers | Cost-effective; ideal for straightforward ceramic components | |
±0.015 | 0.8-1.6 | High | Multi-sided ceramic bushings, connectors | Enhanced precision; fewer setups required for complex shapes | |
±0.005 | 0.4-0.8 | Very High | Complex ceramic turbine isolators, customized insulators | Exceptional accuracy; high-quality surface finishes reducing secondary operations | |
±0.005-0.02 | 0.4-1.6 | Extremely High | Intricate ceramic isolation assemblies | Maximum versatility; enables complex, highly detailed geometries |
Process Selection Strategy
Selecting the optimal CNC milling technology for ceramic isolation accessories depends on complexity, precision requirements, and production volumes:
Simple geometries, larger volumes: 3-axis milling provides cost-effective precision.
Components requiring multi-sided precision: 4-axis milling delivers accuracy with fewer setups.
Complex, intricate shapes demanding high accuracy: 5-axis milling achieves exceptional precision and excellent surface finish, reducing secondary processes.
Surface Treatment
Surface Treatment Performance
Treatment Method | Surface Roughness (Ra μm) | Dielectric Enhancement | Max. Temperature Stability (°C) | Typical Applications | Key Features |
|---|---|---|---|---|---|
0.05-0.2 | Excellent (reduces surface imperfections significantly) | Up to 1700 | High-voltage ceramic insulators, bushing surfaces | Mirror-like finishes enhancing dielectric strength | |
0.8-1.6 | Good (uniform finish for coating adhesion improvement) | Up to 1500 | Ceramic connectors, structural isolators | Uniform matte texture for consistent coating bonding | |
0.4-1.2 | Moderate (functional surface improvement) | Up to 1600 | Thermal isolation ceramics, substrate components | Precise surface patterns improving thermal interface properties | |
No measurable change | Excellent (removal of contaminants enhancing insulation) | Up to 1000 | All ceramic isolation components | Ensures contaminant-free surfaces improving insulation reliability |
Surface Treatment Selection
Surface treatments for ceramic isolation accessories enhance performance based on their specific roles:
High-voltage insulation surfaces: Polishing reduces dielectric breakdown risk by minimizing surface imperfections.
Structural isolators needing coating adhesion: Sandblasting provides excellent surface uniformity and bonding performance.
Components requiring specific functional surface properties: Laser Texturing offers precision control over surface features to optimize performance.
All ceramic components: Ultrasonic Cleaning ensures high cleanliness, improving dielectric reliability and lifespan.
Quality Control
Quality Control Procedures
Dimensional Inspection using Coordinate Measuring Machines (CMM) and optical comparators.
Surface Roughness Measurement via precision profilometers.
Dielectric Strength Testing according to IEC 60243 standards.
Thermal Stability Verification using high-temperature furnace tests.
Mechanical integrity assessment is done through ultrasonic testing (UT) and visual inspection for cracks or defects.
Comprehensive Documentation and Traceability adhering to ISO 9001, ISO 14001, and IEEE standards.
Industry Applications
Ceramic Component Applications
High-voltage bushings and insulators require superior electrical isolation.
Structural isolators for turbine and generator housings.
Connectors and fixtures needing reliable thermal and electrical insulation.
Heat dissipation substrates and insulating supports within power electronics.
