How are tight tolerances and deformation controlled in titanium CNC machining?

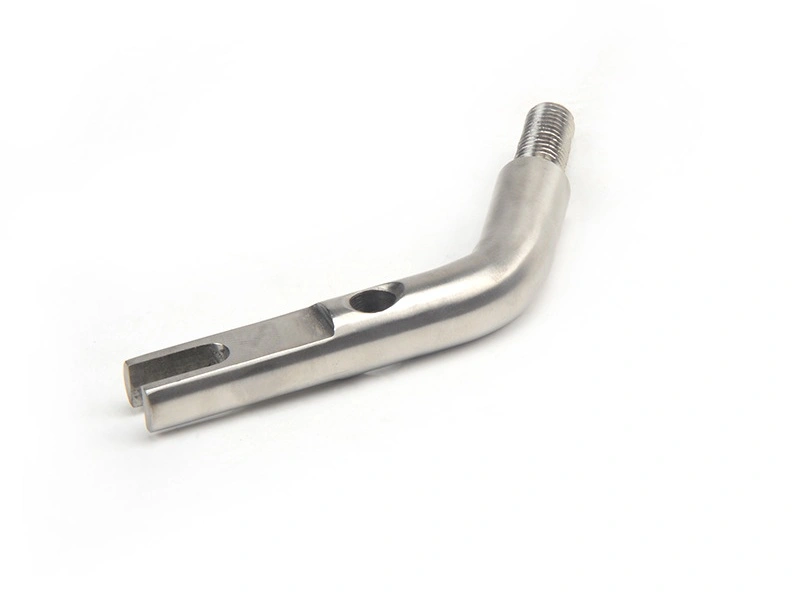

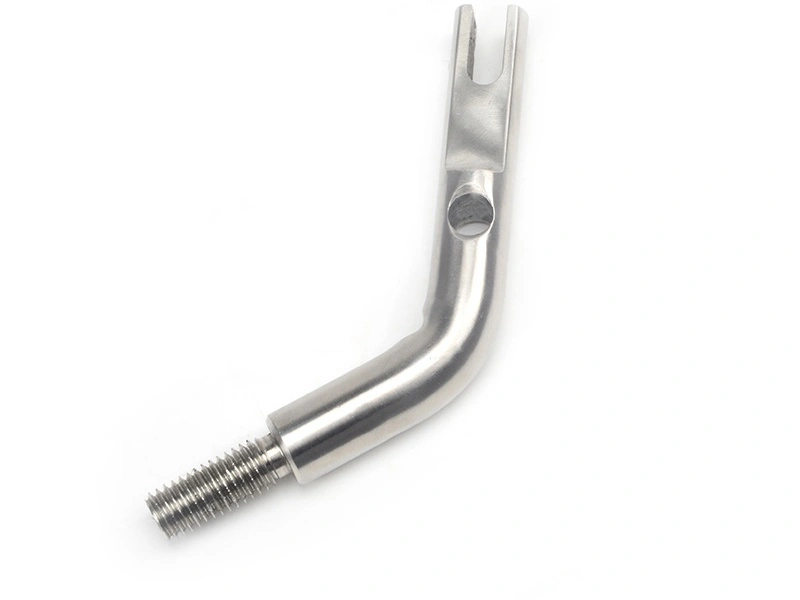

<h2 id="how-are-tight-tolerances-and-deformation-controlled-in-titanium-cnc-machining?">How are tight tolerances and deformation controlled in titanium CNC machining?</h2><p><strong>Tight tolerances and deformation in titanium CNC machining</strong> are controlled by treating the part as a sequence of changing mechanical and thermal states, not by relying on one finish pass or one final measurement. The route starts with functional datums and an agreed inspection state, then combines qualified material, low-distortion workholding, staged stock removal, controlled tool condition, thermal stabilization, datum re-establishment, and post-unclamp verification. No universal tolerance follows from the word titanium; grade, condition, stock form, geometry, setup, and measurement method all affect the result. For projects with <a target="_blank" href="https://www.newaymachining.com/services/titanium-cnc-machining">titanium CNC machining tolerances</a>, buyers should state which features are accepted free, restrained, or assembled and require evidence in that same state.</p><div data-type="row" class="row"><div class="col-12 col-md-6" data-type="col"><p><a target="_blank" href="https://www.newaymachining.com/services/titanium-cnc-machining"><img src="https://www.newaymachining.com/storage/attachments/2026/05/10/titanium-cnc-machining-tolerances-precision-titanium-machining.webp" width="800" height="600" loading="lazy"></a></p></div><div class="col-12 col-md-6" data-type="col"><p><a href="https://www.newaymachining.com/services/titanium-cnc-machining"><img src="https://www.newaymachining.com/storage/attachments/2026/05/10/how-are-tight-tolerances-and-deformation-controlled-in-titanium-cnc-machining.webp" width="800" height="600" loading="lazy"></a></p></div></div><div class="i-typography-table-responsive"><table><tbody><tr><th colspan="1" rowspan="1"><p>Control point</p></th><th colspan="1" rowspan="1"><p>Release evidence and buyer action</p></th></tr><tr><td colspan="1" rowspan="1"><p>Drawing and DFM</p></td><td colspan="1" rowspan="1"><p>Define functional datums, critical characteristics, tolerance standard, and free or restrained acceptance state</p></td></tr><tr><td colspan="1" rowspan="1"><p>Material and blank</p></td><td colspan="1" rowspan="1"><p>Confirm grade, governing specification, condition, stock form, traceability, and allowed substitution before routing</p></td></tr><tr><td colspan="1" rowspan="1"><p>Fixture loading</p></td><td colspan="1" rowspan="1"><p>Locate from stable features, support compliant areas, and compare restrained dimensions with post-unclamp results</p></td></tr><tr><td colspan="1" rowspan="1"><p>Staged stock removal</p></td><td colspan="1" rowspan="1"><p>Leave finish allowance, release the part after roughing, and change the route if movement consumes the tolerance budget</p></td></tr><tr><td colspan="1" rowspan="1"><p>Heat and tool condition</p></td><td colspan="1" rowspan="1"><p>Control engagement and coolant delivery, trend critical features, and measure at the specified thermal condition</p></td></tr><tr><td colspan="1" rowspan="1"><p>Datum transfer</p></td><td colspan="1" rowspan="1"><p>Re-establish functional datums after major stock removal and verify relationships before final features are cut</p></td></tr><tr><td colspan="1" rowspan="1"><p>Finish sequence</p></td><td colspan="1" rowspan="1"><p>Finish mutually dependent features only after the workpiece, fixture, and cutting process demonstrate stability</p></td></tr><tr><td colspan="1" rowspan="1"><p>Final acceptance</p></td><td colspan="1" rowspan="1"><p>Record measurement state, method, uncertainty decision rule, and results against the drawing revision</p></td></tr></tbody></table></div><h3 id="1.-dfm-review-should-identify-risk-features-before-machining-starts">1. DFM review should identify risk features before machining starts</h3><p>DFM review should map each critical feature to its functional datum, machining stage, likely movement mechanism, and acceptance method. A small size tolerance is not the only risk. Position across two setups, profile on a compliant wall, flatness after unclamping, and a bore finished before adjacent stock removal can be harder to preserve. The review should separate functional characteristics from general dimensions and identify where the drawing leaves the inspection state ambiguous. That makes <a target="_blank" href="https://www.newaymachining.com/blogs/dfm-for-cnc-machining-10-golden-rules-to-optimize-designs-and-reduce-costs">DFM for CNC machining</a> a release-planning step rather than a request to relax every demanding requirement.</p><h3 id="2.-fixturing-must-control-the-part-without-forcing-deformation">2. Fixturing must control the part without forcing deformation</h3><p>A titanium fixture should locate the workpiece repeatably without forcing a compliant section into the nominal shape. Support points belong near stable load paths, while clamps need enough force to resist cutting without imprinting a temporary geometry. Over-constraint can make a bore, plane, or profile appear correct on the machine and move after release. A practical validation compares selected characteristics while restrained and again after unclamping under the specified measurement condition. If the change is significant relative to the feature tolerance, the supplier should revise support, clamp sequence, stock allowance, or operation order before releasing production.</p><h3 id="3.-heat-control-is-a-core-part-of-tolerance-control">3. Heat control is a core part of tolerance control</h3><p>Titanium's low thermal conductivity concentrates cutting heat near the tool-workpiece interface, but tool growth, workpiece temperature, edge wear, and thermal surface damage are different risks. Coolant delivery, tool engagement, chip evacuation, and qualified cutting data should therefore be controlled as a system for the stated grade and operation. Dimensions taken immediately after a warm cut can differ from results at the agreed inspection condition. The control plan should define when the part and measurement equipment are stable enough for acceptance, and it should keep surface-integrity checks separate from dimensional approval.</p><h3 id="4.-balanced-material-removal-reduces-part-movement">4. Balanced material removal reduces part movement</h3><p>Balanced removal matters when a blank contains residual stress or the emerging geometry loses stiffness. Consider an engineering scenario, not a Neway customer case: a Ti-6Al-4V bracket has opposing pockets and a position requirement between two mounting datums. Roughing one pocket to depth before opening the other can release stress asymmetrically and move the datum relationship. A safer route roughs both sides with allowance, releases the bracket, re-establishes the functional datums, and checks free-state profile and position before finishing. If movement consumes the tolerance budget, the route, support, or stock split changes; a blind program offset does not prove stability.</p><h3 id="5.-roughing-and-finishing-should-be-separated">5. Roughing and finishing should be separated</h3><p>Roughing, semi-finishing, and finishing should be separate control gates when stock removal can change stiffness or residual-stress balance. After roughing, the part can be unclamped, allowed to stabilize, and checked for movement before final datum surfaces and interfaces are completed. Intermediate stress relief is not an automatic remedy because it may alter the specified material condition or downstream properties; it requires approval against the material and heat-treatment requirements. In <a target="_blank" href="https://www.newaymachining.com/services/precision-machining">precision machining</a>, the buyer should ask which dimensions are checked at each gate and what result causes a hold, reroute, or rejection.</p><h3 id="6.-tool-wear-must-be-managed-to-prevent-size-drift">6. Tool wear must be managed to prevent size drift</h3><p>Tool wear can change cutting force, heat generation, burr formation, bore size, and profile before an edge fails visibly. A controlled route ties tool replacement or compensation to evidence from the stated operation, material, and critical feature rather than to a universal tool-life claim. Reference features, in-process checks, and trend limits can detect drift before the final inspection lot is complete. Compensation remains bounded because it cannot correct fixture distortion, datum transfer error, or post-unclamp movement. Buyers should request the feature-level control plan and reaction rule for dimensions whose failure would affect assembly or require expensive rework.</p><h3 id="7.-complex-titanium-parts-often-need-advanced-machining-strategy">7. Complex titanium parts often need advanced machining strategy</h3><p>Fewer setups can reduce datum-transfer opportunities when one stable orientation exposes several related features, so <a target="_blank" href="https://www.newaymachining.com/services/multi-axis-machining">multi-axis machining</a> may help complex titanium geometry. More axes do not automatically guarantee tighter finished tolerances. The result still depends on fixture stability, tool reach, calibration, thermal behavior, and whether functional datums remain accessible. On-machine probing can confirm setup location and process drift, but it shares parts of the machine environment and does not replace independent final acceptance. The routing decision should compare one-setup access against the need to release, rest, refixture, or inspect the part between major material-removal stages.</p><h3 id="8.-final-inspection-should-match-the-functional-risk">8. Final inspection should match the functional risk</h3><p>Final inspection must evaluate the specified characteristic from the specified datums and in the same free, restrained, or assembled state required by the drawing. ASME Y14.5 provides a design language for GD&amp;T, while ISO 1101 defines geometrical-tolerancing symbols and interpretation within the ISO GPS system; the drawing should invoke the applicable standard and edition. When the contract uses ISO GPS decision rules, ISO 14253-1 addresses conformity decisions near specification limits with measurement uncertainty considered. These standards define communication and acceptance, not machining capability. The RFQ should identify drawing revision, critical characteristics, datum sequence, measurement state, sampling, required report, and agreed decision rule. The supplier can then select CMM, dedicated gauges, or other suitable methods within the broader <a target="_blank" href="https://www.newaymachining.com/blogs/quality-control-in-cnc-machining-how-tolerances-surface-finish-and-geometry-are-verified">quality control in CNC machining</a> plan and release only evidence that matches those requirements.</p>
