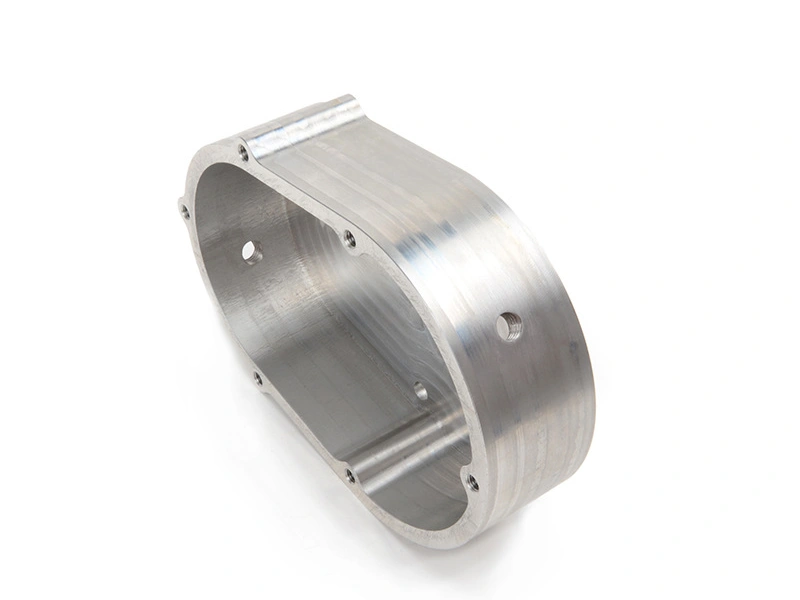

Why Are Surface Finish and Cleanliness So Important for Medical CNC Parts?
Why Are Surface Finish and Cleanliness So Important for Medical CNC Parts?
Surface finish and cleanliness matter because medical CNC parts can meet dimensional tolerances and still fail at their interface or delivery release. Computer numerical control (CNC) machining can leave roughness, burrs, particles, residues, or an uncontrolled cleaning state that blocks assembly, movement, sealing, corrosion control, or validation. Requirements depend on contact path, function, material, downstream process, and whether the part is clean or validated as sterile. Buyers should put surfaces, edge condition, cleanliness acceptance, final-process sequence, and packaging boundary in the request for quotation (RFQ).
Surface finish is measurable, not a promise. Ra or Rz needs a parameter, direction, evaluation length, and inspection condition. CNC grinding, polishing, or electropolishing is justified only when function and final-state evidence support it. American Society of Mechanical Engineers (ASME) B46.1 and International Organization for Standardization (ISO) 21920 provide measurement language; neither assigns a universal medical acceptance value.
1. Surface Roughness Matters Because Medical Parts Often Contain Functional Contact Areas
Roughness matters on surfaces that slide, seal, position, guide, or support. Peaks increase friction and wear; valleys can retain particles or cleaning residue. The result depends on mating material, pressure, motion, seal design, fluid, and cleaning route, so “smooth” cannot replace a drawing callout.
Specify the parameter and measurement direction for each critical face, bore, shaft, sealing land, or channel. Measure after the final process. Grinding, polishing, coating, passivation, or electropolishing can remove material, round edges, change lay, or alter a bore after CNC dimensions pass.
Surface Condition Issue | Why It Is a Problem in Medical Parts | Typical Result |
|---|---|---|
High or uncontrolled roughness | Raises friction and creates sites that retain residue | Unstable movement, seal leakage, or harder cleaning; specify Ra/Rz, direction, and final inspection condition |
Burr or edge rollover | Interferes with mating features or leaves a sharp, particle-producing edge | Assembly damage or handling risk; define edge condition and inspect after deburring |
Residual chips, coolant, or abrasive | Can remain inside holes, slots, channels, or cavities | Particle or residue failure; state the cleaning route and acceptance method |
Scratch, smear, or grinding burn | Changes corrosion behavior, cleanability, or the intended contact surface | Premature wear or cosmetic rejection; inspect after the final surface operation |
2. Burr Control Is Critical Because Small Medical Parts Can Fail from Very Small Edge Defects
Burrs form at drilled exits, intersecting holes, thread starts, slot edges, and milled corners when the tool exits unsupported material or becomes worn. A burr can change fit, scrape a mating surface, create a sharp edge, or break loose as a particle; risk rises in miniature features.
Deburring is controlled, not permission to remove material everywhere. Brushing, tumbling, manual tools, abrasive flow, or an edge break can affect a bore, thread crest, seal land, or datum. Buyers should identify protected edges, allowable range, breakout locations, and inspection method. Inspect after deburring or finishing.
3. Cleanliness Is Just as Important as Geometry Because Residue Can Remain Hidden Inside Medical Features
Cleanliness includes chips, metal particles, cutting fluid, polishing compound, salts, fingerprints, and other residues after machining or finishing. Blind holes, intersecting channels, internal threads, narrow slots, and rough pockets can hide contamination even when an exterior looks clean. The process must reach the feature and prevent recontamination.
Clean is not sterile. A supplier may deliver a cleaned component without claiming validated sterilization. ISO 19227 addresses orthopedic implant cleanliness, not every medical CNC part. The RFQ should state ownership of cleaning, validation, sterilization, and packaging, plus the required particle, residue, visual, or chemical evidence.
4. Body-Contact and Non-Body-Contact Parts Do Not Have the Same Surface Priority
Body-contact, indirect-contact, and implant-adjacent parts need controls tied to device risk and contact path. Tissue, fluid, or cleaning interfaces may need tighter roughness, edge, and residue controls than noncontact brackets. ISO 10993-1 uses the finished device, contact nature, contact duration, and risk management to frame biological evaluation; it does not declare a material or finish universally safe.
Non-body-contact housings and supports still need clean interfaces, corrosion control, and loose-particle protection. ASTM International F86 describes surface preparation and marking for metallic surgical implants within its scope; it sets neither a universal Ra value nor sterility. Link the surface callout to the device specification and downstream validation plan.
Medical Part Type | Main Surface Priority | Main Cleanliness Priority |
|---|---|---|
Body-contact or implant-adjacent part | Function-specific texture, controlled edge, and stable final state | Defined particle and residue controls tied to contact risk and validation |
Surgical or moving instrument part | Low-friction working surfaces and safe edge condition | Clean internal features and a documented post-process wash |
Non-body-contact housing or bracket | Stable fit, protected datums, durable finish, and controlled appearance | Assembly-ready cleanliness and corrosion or coating protection |
5. Post-Processing Matters Because Basic Machining Is Not Always Enough for Medical Surface Quality
Post-processing is justified when cutting alone cannot reliably produce the required surface or edge state. Grinding can improve size, roundness, and texture on a shaft or bore, but heat, wheel condition, and stock allowance can create burn or distortion. The supplier workflow should connect rough machining, deburring, and grinding to the released condition.
Polishing can reduce peaks but round edges or remove material unevenly. electropolishing can change suitable metal surfaces; dimensional and edge effects depend on process and geometry. Washing, final cleaning, drying, inspection, and packaging follow the last surface operation. Affected dimensions, edges, datums, or texture require a final recheck; a finish name alone is not an acceptance criterion.
6. Cleaning Flow After Machining Is Essential Because the Part Must Arrive in a Controlled Condition
A credible cleaning flow removes contaminants from the approved machining and finishing route. It separates dirty from final handling, flushes blind and intersecting features, rinses with the specified medium, dries without adding particles, and protects the part to inspection and packaging. Chemistry, temperature, agitation, and drying depend on material, geometry, and downstream use.
Acceptance must be measurable and risk-based. A buyer may require visual or magnified inspection, particle limits, nonvolatile residue, ionic or chemical checks, or a documented extraction method. These tests are not interchangeable. The RFQ should state the limit, sampling basis, record, and owner of cleaning validation; “clean and dry” alone leaves release undefined.
7. Surface Finish and Cleanliness Also Affect Long-Term Reliability
Surface and cleanliness defects can appear after assembly. Rough contact surfaces accelerate wear, trapped residues can support corrosion or deposit transfer, and damaged passivation or coating can change during repeated cleaning. A one-time visual check does not prove a stable final state.
Validation should use the real interface and final material and finish. A representative assembly can reveal drag, seal loss, particle generation, or fit change that a flat coupon cannot. The device owner sets required use, cleaning, corrosion, or biological evaluations; the supplier preserves supporting process and inspection records.
8. Summary
Surface finish and cleanliness affect fit, movement, sealing, corrosion, particle risk, cleaning, and downstream validation, not just appearance. The required condition depends on feature function, contact path, material, finishing route, and acceptance method.
Before release, connect grinding, suitable surface finishing, washing, drying, inspection, and protected packaging to one final-state requirement. For the medical device industry, dimensions alone do not define release; edge, texture, residue, records, and sterility boundary must also be stated.
