What Tolerances and Surface Requirements Matter Most in Oil and Gas Components?

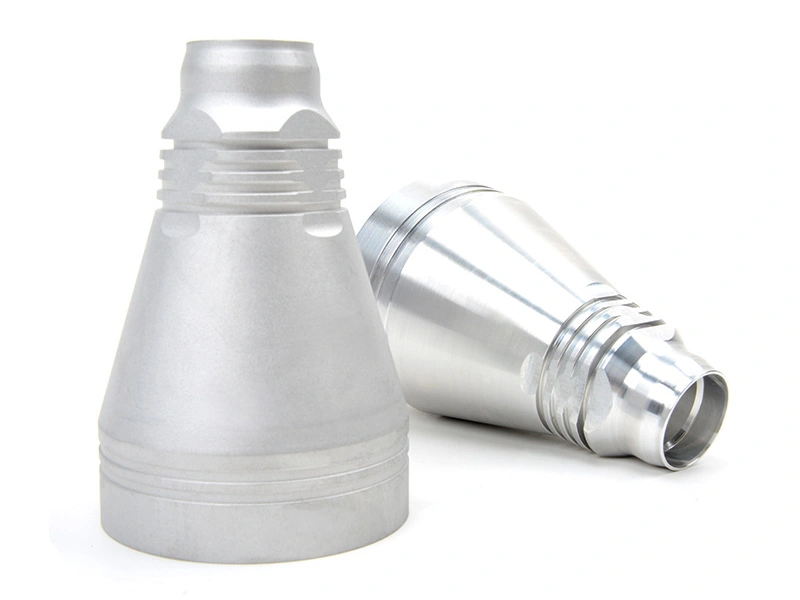

<p></p>

<p>The most important requirements are the size, form, position, runout, thread, seal-surface texture, edge condition, and final-state dimensions that protect containment, alignment, motion, and assembly. Oil and gas parts do not share one universal tolerance or roughness value. The correct limits depend on the seal type, pressure-boundary design, mating parts, material condition, temperature, coating or finishing, datum scheme, and acceptance method. Buyers should mark critical characteristics and state whether each requirement applies before or after heat treatment, coating, lapping, or assembly.</p>

<p><a target="_blank" href="https://www.newaymachining.com/services/cnc-machining">CNC machining</a> can create controlled datums and functional features, while <a target="_blank" href="https://www.newaymachining.com/services/cnc-turning">CNC turning</a> and <a target="_blank" href="https://www.newaymachining.com/services/cnc-drilling">CNC drilling</a> address cylindrical and hole-related geometry. Process selection alone does not prove conformance. The drawing, operation sequence, workholding, inspection method, measurement uncertainty, and final part condition must support the same functional requirement.</p>

<h3 id="1.-why-critical-tolerances-matter-more-than-general-dimensions-in-oil-and-gas-parts">1. Why Critical Tolerances Matter More Than General Dimensions in Oil and Gas Parts</h3>

<p>Critical tolerances matter because a small error at a seal, thread, bearing, valve seat, or datum-controlled port can change leakage, load, wear, or assembly. A larger variation on a nonfunctional exterior may have no comparable consequence. Tightening every dimension raises inspection and manufacturing cost without necessarily reducing the dominant risk.</p>

<p>The drawing should assign tolerance to function. ASME Y14.5 or ISO 1101 can define geometric controls when the selected standard and edition are stated consistently. Datums must represent how the part locates or functions, not merely the easiest surfaces to measure. The RFQ should identify mating data, assembly sequence, criticality, and the required inspection record.</p>

<div class="i-typography-table-responsive"><table><tbody><tr><th colspan="1" rowspan="1"><p>Critical Feature</p></th><th colspan="1" rowspan="1"><p>Main Function</p></th><th colspan="1" rowspan="1"><p>Main Risk If Out of Control</p></th></tr><tr><td colspan="1" rowspan="1"><p>Seal face, seat, or groove</p></td><td colspan="1" rowspan="1"><p>Creates the specified contact and continuous pressure barrier</p></td><td colspan="1" rowspan="1"><p>Leak path, seal damage, uneven compression, or poor shutoff</p></td></tr><tr><td colspan="1" rowspan="1"><p>Hole or port position</p></td><td colspan="1" rowspan="1"><p>Locates fasteners, flow paths, instruments, and mating components</p></td><td colspan="1" rowspan="1"><p>Assembly interference, wall reduction, misalignment, or flow restriction</p></td></tr><tr><td colspan="1" rowspan="1"><p>Thread and shoulder</p></td><td colspan="1" rowspan="1"><p>Controls engagement, preload, seal location, and connection alignment</p></td><td colspan="1" rowspan="1"><p>Galling, cross-threading, leakage, or localized overload</p></td></tr><tr><td colspan="1" rowspan="1"><p>Axis relationship or runout</p></td><td colspan="1" rowspan="1"><p>Aligns bores, stems, sleeves, seats, and rotating interfaces</p></td><td colspan="1" rowspan="1"><p>Uneven wear, sticking, vibration, or eccentric seal contact</p></td></tr><tr><td colspan="1" rowspan="1"><p>Surface texture and edge condition</p></td><td colspan="1" rowspan="1"><p>Controls contact, lubrication, seal handling, and local cleanliness</p></td><td colspan="1" rowspan="1"><p>Seal cutting, trapped debris, unstable friction, or corrosion initiation</p></td></tr></tbody></table></div>

<h3 id="2.-sealing-faces-are-often-the-most-important-surfaces-on-the-part">2. Sealing Faces Are Often the Most Important Surfaces on the Part</h3>

<p>Sealing faces need requirements matched to the seal mechanism. A gasketed flange, metal seat, O-ring bore, threaded shoulder, and dynamic stem seal use different contact, texture, lay, flatness, waviness, groove, and edge controls. A single roughness value cannot define the complete leakage path or guarantee the assembled seal.</p>

<p>Inspection should cover the functional zone and final condition. Surface-texture standards such as ASME B46.1 define terms and measurement practice but do not supply a universal acceptance value for oil and gas seals. Buyers should provide the seal or gasket data, mating material, assembly load, pressure direction, finish direction, prohibited defects, coating state, and functional test requirement.</p>

<h3 id="3.-hole-position-matters-because-misalignment-can-damage-the-whole-assembly">3. Hole Position Matters Because Misalignment Can Damage the Whole Assembly</h3>

<p>Hole position matters when a port must meet an internal passage, a bolt pattern must align a joint, or an instrument feature must preserve pressure-wall thickness. Diameter and position answer different questions. A correct hole size can still intersect the wrong location, break into a seal land, reduce local wall, or force an assembly into stress.</p>

<p><a target="_blank" href="https://www.newaymachining.com/services/cnc-drilling">CNC drilling</a> should reference the functional datum system and account for tool entry, breakthrough, burrs, drift, subsequent finishing, and intersecting passages. Verification may use a coordinate measurement, functional gauge, optical method, or section-specific technique. The selected method must access the feature and resolve the stated tolerance with suitable uncertainty.</p>

<h3 id="4.-thread-quality-is-critical-because-oil-and-gas-connections-carry-load-and-pressure-at-the-same-time">4. Thread Quality Is Critical Because Oil and Gas Connections Carry Load and Pressure at the Same Time</h3>

<p>Thread quality includes designation, form, pitch, taper where applicable, lead, diameter, flank condition, gauge plane, axis, shoulder relationship, surface damage, and permitted repair. The sealing mechanism must also be known. Some joints seal on a taper, others on a shoulder, cone, gasket, or separate seal, so a passing thread gauge may not prove leak-tight assembly.</p>

<p>Threads made by <a target="_blank" href="https://www.newaymachining.com/services/cnc-turning">CNC turning</a> still need the specified standard and gauge practice. ASME B1.20.1 applies when the drawing calls for covered NPT threads; API 5B applies only to covered casing, tubing, and line-pipe connections. Proprietary connections require their approved drawings, gauges, handling rules, and acceptance criteria.</p>

<div class="i-typography-table-responsive"><table><tbody><tr><th colspan="1" rowspan="1"><p>Thread-Related Risk</p></th><th colspan="1" rowspan="1"><p>Possible Cause</p></th><th colspan="1" rowspan="1"><p>Operational Effect</p></th></tr><tr><td colspan="1" rowspan="1"><p>Leakage at the connection</p></td><td colspan="1" rowspan="1"><p>Wrong seal assumption, gauge plane, shoulder, taper, or surface condition</p></td><td colspan="1" rowspan="1"><p>Incomplete seal contact or an uncontrolled leakage path</p></td></tr><tr><td colspan="1" rowspan="1"><p>Assembly damage</p></td><td colspan="1" rowspan="1"><p>Form error, burr, contamination, handling damage, or axis mismatch</p></td><td colspan="1" rowspan="1"><p>Cross-threading, galling, seizure, or damaged mating component</p></td></tr><tr><td colspan="1" rowspan="1"><p>Unstable joint load</p></td><td colspan="1" rowspan="1"><p>Lead, pitch, engagement, shoulder, or assembly procedure out of control</p></td><td colspan="1" rowspan="1"><p>Variable preload, loosening, local overload, or repeat-assembly failure</p></td></tr></tbody></table></div>

<h3 id="5.-concentricity-is-essential-for-rotating,-sealing,-and-turned-components">5. Concentricity Is Essential for Rotating, Sealing, and Turned Components</h3>

<p>Buyers often use “concentricity” to describe several different needs. A rotating shaft may need runout control, a seat may need position to a guide bore, and a sleeve may need coaxial inside and outside diameters. The drawing should specify the actual functional control, datum, evaluation zone, and free-state or restrained condition.</p>

<p>One-setup machining can reduce setup-related error, but it does not guarantee final alignment after unclamping, heat treatment, coating, grinding, or thin-wall relaxation. Inspection must use the same datum logic as the requirement. A roundness result does not prove coaxiality, and machine spindle performance does not prove finished-part runout.</p>

<h3 id="6.-surface-roughness-directly-affects-sealing,-wear,-and-corrosion-behavior">6. Surface Roughness Directly Affects Sealing, Wear, and Corrosion Behavior</h3>

<p>Surface roughness can affect seal contact, friction, lubricant retention, coating adhesion, cleaning, and local corrosion behavior, but “smoother” is not always better. A dynamic seal may need a defined texture and lay, while a coating may require preparation for adhesion. Waviness, scratches, chatter, laps, pits, and directional tool marks can matter even when one roughness parameter passes.</p>

<p>The surface requirement should name the parameter, cutoff or evaluation method where required, measurement direction, location, and final process state. Coating, plating, lapping, honing, electropolishing, or cleaning may change dimensions and texture. Buyers should state whether inspection occurs before treatment, after treatment, or at both stages, and which result controls release.</p>

<h3 id="7.-what-happens-when-these-critical-dimensions-fail?">7. What Happens When These Critical Dimensions Fail?</h3>

<p>A failed critical characteristic changes a functional relationship. Seal-face error creates an incomplete contact path; port position can reduce wall or obstruct flow; thread damage can prevent controlled assembly; axis error changes load and wear; and surface defects can cut seals or retain contaminants. The same nonconformance can have different consequences in pressure-boundary and noncritical locations.</p>

<p>Disposition therefore needs engineering context, not a generic deviation approval. The review should identify the affected function, mating parts, material and finish state, measurement uncertainty, assembly and test evidence, repair limits, and reinspection. Rework that removes material or adds coating can shift another characteristic and must be included in final-state acceptance.</p>

<div class="i-typography-table-responsive"><table><tbody><tr><th colspan="1" rowspan="1"><p>Failed Requirement</p></th><th colspan="1" rowspan="1"><p>Typical Result</p></th><th colspan="1" rowspan="1"><p>System-Level Effect</p></th></tr><tr><td colspan="1" rowspan="1"><p>Seal face or groove out of specification</p></td><td colspan="1" rowspan="1"><p>Uneven contact, damaged seal, or continuous leak path</p></td><td colspan="1" rowspan="1"><p>Failed leakage test or unstable pressure containment</p></td></tr><tr><td colspan="1" rowspan="1"><p>Hole or port position error</p></td><td colspan="1" rowspan="1"><p>Misalignment, interference, thin wall, or blocked intersection</p></td><td colspan="1" rowspan="1"><p>Assembly stress, restricted flow, or pressure-boundary concern</p></td></tr><tr><td colspan="1" rowspan="1"><p>Thread or shoulder defect</p></td><td colspan="1" rowspan="1"><p>Incorrect engagement, preload, seal location, or surface contact</p></td><td colspan="1" rowspan="1"><p>Assembly damage, leak path, or joint instability</p></td></tr><tr><td colspan="1" rowspan="1"><p>Runout or axis relationship error</p></td><td colspan="1" rowspan="1"><p>Eccentric load, uneven clearance, or displaced seat contact</p></td><td colspan="1" rowspan="1"><p>Wear, vibration, sticking, or poor shutoff</p></td></tr><tr><td colspan="1" rowspan="1"><p>Surface texture or edge defect</p></td><td colspan="1" rowspan="1"><p>Seal cutting, debris retention, friction change, or coating damage</p></td><td colspan="1" rowspan="1"><p>Leakage, contamination, accelerated wear, or early corrosion</p></td></tr></tbody></table></div>

<h3 id="8.-these-requirements-point-directly-to-precision-machining-capability">8. These Requirements Point Directly to Precision Machining Capability</h3>

<p>Supplier capability should be judged by the complete control route, not a machine specification or sample CMM report. Contract review, datum strategy, workholding, operation sequence, tool control, in-process checks, special-process allowance, final inspection, calibrated equipment, measurement uncertainty, nonconformance control, and change control must support the drawing's critical characteristics.</p>

<p><a target="_blank" href="https://www.newaymachining.com/services/cnc-machining">CNC machining</a>, <a target="_blank" href="https://www.newaymachining.com/services/cnc-turning">CNC turning</a>, and <a target="_blank" href="https://www.newaymachining.com/services/cnc-drilling">CNC drilling</a> describe manufacturing processes, not guaranteed finished-part capability. Buyers should ask the supplier to explain how the actual feature will be produced and verified in its final state. Evidence from a representative first article or qualification lot is more useful than a generic equipment list.</p>

<h3 id="9.-summary">9. Summary</h3>

<p>The requirements that matter most are those tied to the component's seal, pressure wall, thread, alignment, flow path, motion, and assembly. Seal-face form and texture, hole position, thread geometry, runout or axis relationship, surface defects, edge condition, and post-finish dimensions need feature-specific acceptance. The drawing should state datums, governing standards, final state, and inspection method instead of relying on “tight tolerance” or one roughness value.</p>

<p>An RFQ for <a target="_blank" href="https://www.newaymachining.com/services/cnc-machining">CNC machining</a>, <a target="_blank" href="https://www.newaymachining.com/services/cnc-turning">turning</a>, or <a target="_blank" href="https://www.newaymachining.com/services/cnc-drilling">drilling</a> should include the controlled drawing, mating and seal data, material and heat-treatment condition, finish and coating state, critical-characteristic list, dimensioning standard, inspection level, measurement method, functional tests, quantity, and required records. Those inputs let the supplier protect the few characteristics that determine function without making every dimension unnecessarily restrictive.</p>
