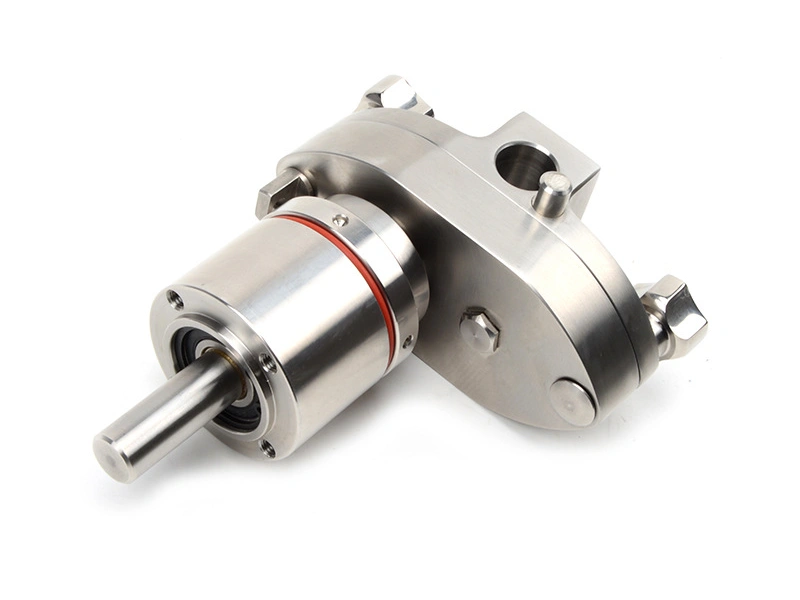

A CNC prototyping service converts a controlled CAD model and drawing into inspectable metal or plastic parts for a named engineering decision. Use it when the design is mature enough to define material, functional interfaces, datums, and test conditions, but still open to evidence-based changes. CNC prototypes can validate machined geometry, assembly fit, and selected functions. They cannot automatically prove a different production material, stock form, process route, or long-term reliability. The RFQ should state the question each prototype must answer and the evidence required to release the next development stage.
CNC prototyping is most useful after concept geometry has stabilized and before a team authorizes repeat parts. The wider prototyping plan should separate appearance, fit, structural, functional, and process-learning objectives because one sample rarely proves all five. A machined part can reproduce bores, threads, pockets, sealing lands, and datum-related mounting features in a specified material condition before repeat CNC machining begins. The result remains valid only for the tested configuration, measurement method, loading, environment, and process state. Buyers should record those boundaries before a successful test is treated as design approval.
A CNC prototyping service should provide a controlled path from released product definition to decision-ready hardware. That path includes authority-file review, manufacturing-risk questions, exact material and condition, setup and datum planning, machining, deburring, any approved finish, and inspection tied to the test purpose. The deliverable is not merely a part that resembles the model. It is a part, its configuration record, and sufficient evidence to decide whether the design should change, proceed, or require another test.
Consider a small fluid-control manifold specified as 6061-T6 plate with threaded ports, an O-ring groove, and a mounting datum. The prototype can test port alignment, thread engagement, seal assembly, and leakage under the buyer's defined conditions. A passing result does not validate a later cast blank because porosity, stock allowance, material history, and distortion can differ. Before release, identify the drawing revision, stock form, critical interfaces, deburring criteria, final surface state, inspection method, test fixture, acceptance rule, and person authorized to disposition the result.
Prototype Service Element | Decision Evidence and Boundary |
|---|---|
Drawing and model review | Freeze authority, revision, units, datums, interfaces, open assumptions, and change owner before machining |
Material selection | Record grade, condition, stock form, traceability, substitution authority, and differences from the planned production material |
Machining and finishing | Define setup-sensitive features, burr limits, final finish state, masking, outside-process handoff, and route differences that restrict the result |
Inspection | Measure named characteristics from agreed datums with a suitable method, then link the report to revision, part, and test decision |
CNC prototyping is different because it can answer questions that depend on machined interfaces and a specified engineering material. A visual model can confirm envelope, access, appearance, or human interaction without reproducing the final load path or surface state. A CNC prototype can carry controlled hole patterns, bearing seats, threads, sealing geometry, flat mounting faces, and datum relationships. It still proves only the variables represented by its stock, material condition, setup route, finish, and test configuration.
The choice should follow the decision, not the perceived status of the process. Use a concept model when the unresolved question is shape, packaging, or rapid layout iteration. Use CNC when a mating feature, load-bearing section, seal, thread, thermal contact, or measurement result needs production-relevant geometry. If the planned product will be molded, cast, forged, welded, or additively manufactured, list the process-dependent behavior that a stock-machined prototype cannot reproduce. That list prevents a precise prototype from creating false confidence.
CNC prototyping should support structural validation when the question depends on actual section geometry, mating constraints, load introduction, or the specified wrought material condition. The test plan should define load direction, attachment condition, temperature, permitted deformation, failure criterion, and whether the sample represents the intended product form. Brackets, frames, mounts, housings, and support blocks can benefit when machining reproduces the critical load path. Structural approval still requires analysis or testing appropriate to the product risk.
Clamping and material removal can also change the part being evaluated. A thin wall may measure correctly while restrained and move after unclamping. Roughing can release residual stress and alter the relationship between a mounting datum and a bore. The prototype plan should therefore identify free-state or restrained-state inspection, sequence-sensitive datums, and the state in which the part is loaded. Compare the measured condition with the test fixture and assembly constraint before attributing a structural result solely to the CAD geometry.
CNC prototyping is appropriate for functional validation when performance depends on machined dimensions, surfaces, or interfaces that the prototype can represent. Examples include thread engagement, bearing fit, valve or seal geometry, shaft alignment, thermal contact, sensor position, and fluid passage connectivity. The test must define the relevant material state, mating parts, assembly torque or restraint, medium, load, temperature, duration, and acceptance rule. A dimensional report supports geometry; it does not replace the specified functional test.
Functional failure often comes from an interaction rather than one out-of-tolerance size. A groove may pass inspection while its edge damages a seal. A bore may meet size yet misalign from the mounting datum. Debris or a burr may obstruct an intersecting passage. Connect feature-level inspection to assembly and functional evidence, then record which result controls release. When a finish or heat treatment changes size, friction, cleanliness, or surface condition, test the final state or state the remaining validation gap.
Validation Type | Question, Evidence, and Release Limit |
|---|---|
Structural validation | Does the represented material and load path meet the defined deformation or failure criterion under the specified fixture and environment? |
Functional validation | Do controlled geometry, surface state, mating parts, and test conditions produce the required operating result without extending beyond the tested configuration? |
Assembly validation | Do datum-related interfaces, hardware, clearances, and sequence assemble correctly, and which adjacent parts or temporary adjustments limit approval? |
Use CNC prototyping for assembly validation when fit depends on actual machined interfaces rather than overall envelope alone. Hole patterns, thread depth, counterbores, locating diameters, datum faces, shaft fits, seal compression, and stack-up features can be checked with the intended mating parts. The released test configuration should identify mating-part revisions, hardware, assembly sequence, torque or restraint where relevant, and the acceptance result. Otherwise, a successful fit may belong only to one uncontrolled combination.
An assembly test should distinguish direct fit evidence from manual correction. Filing a slot, selecting one favorable mating part, forcing a fastener, adding an unplanned shim, or assembling in a different order can hide a design or process problem. Record every adjustment and decide whether it changes the model, tolerance, assembly instruction, or prototype route. When adjacent parts are themselves prototypes, measure or identify their condition so accumulated variation is not incorrectly assigned to the CNC component.
CNC prototyping is most useful from engineering validation through representative pilot preparation, after a testable product definition exists and before repeat production is released. Early engineering samples can close geometry and interface questions. Functional samples can test represented material and surface conditions. Assembly builds can expose datum, clearance, and sequence conflicts. A later representative lot can examine whether the planned manufacturing and inspection route supports the next stage. Each build needs a separate purpose and release criterion.
The correct entry point is the moment a team can define an engineering question more precisely than a request to make a sample. Required inputs include the governing model and drawing, revision precedence, quantity, exact material condition, critical features, final finish, mating context, test method, evidence package, and change authority. If those inputs remain open, machining may still support exploration, but the result should not be called validation. The output should close a named assumption or create a documented design action.
Development Stage | CNC Prototype Gate |
|---|---|
Engineering validation | Release stable authority files and use measured geometry or material behavior to close a defined design assumption |
Functional testing | Match relevant material, interfaces, finish state, mating parts, environment, and acceptance rule to the operating question |
Assembly review | Control adjacent revisions, hardware, sequence, restraint, adjustments, and datum-related fit before approving integration |
Pre-production refinement | Identify temporary prototype variables, run a representative route where needed, close deviations, and define revalidation triggers |
CNC prototyping is often preferred for products expected to use machined interfaces because revisions can be implemented from controlled CAD and drawing data without dedicated production tooling. That flexibility is valuable when a test changes a bore, wall, slot, mounting face, or thread. It does not eliminate setup, programming, material, or inspection work. Buyers should decide which features need production-intent control and which exploratory features can remain economical, then keep both groups visible in the prototype specification.
Speed has value only when the sample answers the right question. Freezing datum logic and critical interfaces before programming prevents fast manufacture of an obsolete configuration. Noncritical geometry can remain under broader controls when it does not affect the test. If an urgent build uses alternate stock, a temporary fixture, manual finishing, or reduced reporting, list the exception beside the affected validation claim. That record preserves design agility without allowing an expedient route to become undocumented production approval.
CNC prototyping supports later manufacturing by revealing access, workholding, burr, distortion, tool-life, finish, and inspection problems while changes are still manageable. The useful output is a decision record, not a promise that the prototype route can simply be repeated. Identify which setup choices, manual operations, stock forms, outside processes, and inspection methods are temporary. Then decide whether the next stage needs a revised drawing, a representative pilot, stronger controls, or a different process route.
Transfer evidence should connect the approved revision to material identity, critical-characteristic results, functional or assembly outcomes, open deviations, and change triggers. A prototype that required hand fitting or selective assembly may still answer a development question, but it does not demonstrate repeatability. The buyer and supplier should agree which variables remain fixed and which will change for low-volume supply. Revalidate any change that can alter the approved interface, material behavior, surface state, or test conclusion.
A CNC prototyping service produces decision-ready machined hardware from controlled product data when development has moved beyond concept review. It should be used when a team needs evidence about represented material behavior, datum-related geometry, structural response, functional interfaces, assembly fit, or machining risk before repeat production. The evidence applies only to the released revision, material and stock form, process state, inspection method, mating context, and test conditions that the prototype actually represents.
Before ordering, connect the broader prototyping objective to the exact CNC machining deliverable. Send authority files, grade and condition, critical interfaces, datums, finish state, test inputs, acceptance rules, evidence requirements, and change owner in one RFQ package. Release the next stage only after the prototype result closes its named question and every route difference is recorded. This approach turns a machined sample into controlled development evidence without overstating what one build can prove.
