What CAD Files and Technical Details Are Needed to Start a Custom CNC Order?

What CAD Files and Technical Details Are Needed to Start a Custom CNC Order?

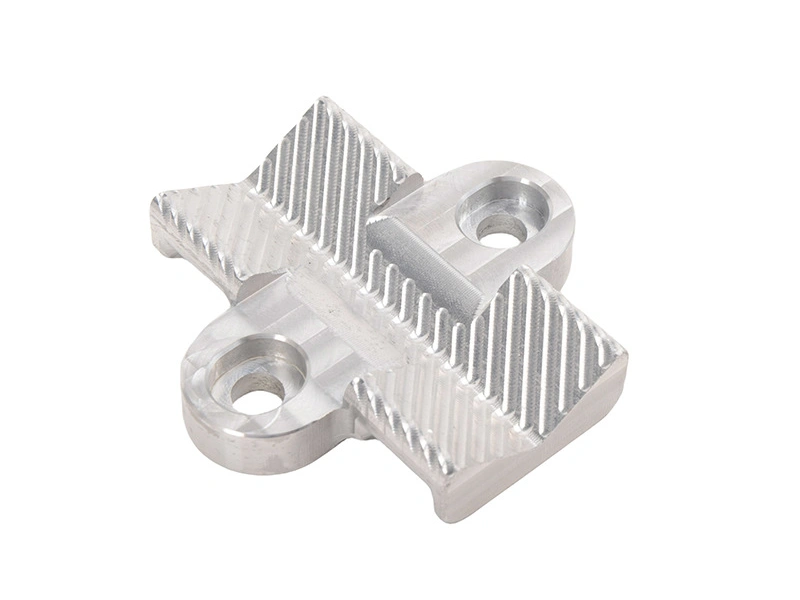

To start a custom computer numerical control order, usually called a CNC machining order, provide a usable computer-aided design (CAD) model, a controlled 2D drawing or authoritative model-based definition, and the commercial details needed to quote the same scope. The package should identify part number, revision, units, material grade and condition, stock or certification restrictions, finish, tolerances and datums, threads, critical features, quantity, production stage, inspection records, packaging, delivery terms, and allowed alternatives. A file format alone is not enough. Buyers must state which dataset governs when model, drawing, purchase order, or later clarification conflicts.

A complete request for quotation (RFQ) reduces clarification time and prevents suppliers from pricing different assumptions. Missing material condition can change stock availability and machining behavior. Missing final-state requirements can hide coating or heat-treatment effects. Missing quantity can change fixture and inspection economics. Include a contact who can approve technical questions and record every answer against the released revision. The related page on what file types are best for CNC machining orders helps compare file exchange choices, while this page defines the complete order-start package.

1. Which CAD File Formats Are Most Useful for a Custom CNC Order?

The Standard for the Exchange of Product model data (STEP) is a common neutral format for transferring solid geometry between computer-aided design and manufacturing systems. STEP belongs to the International Organization for Standardization (ISO) 10303 family, but the exported content still depends on the source model, application protocol, and receiving software. A native CAD file can preserve design features when both parties use compatible software. An Initial Graphics Exchange Specification (IGES) file can transfer surfaces and wireframe data, but imported geometry may need repair. Send the format the supplier can validate, and keep the released native source available when translation questions affect a critical feature.

A 3D model supports stock review, setup planning, cutter access, collision checks, computer-aided manufacturing (CAM) programming, and geometry inspection. It does not automatically define material, tolerances, thread class, surface texture, edge condition, or final finish. Mesh formats can help communicate shape or scan data, but faceted geometry may be unsuitable as the sole authority for precision machining. Ask the supplier to confirm that the model imports as the expected solid or surface set, with correct units and no missing, duplicate, open, or shifted geometry.

2. Why Is a PDF Drawing Still Important If a 3D Model Is Already Provided?

A Portable Document Format (PDF) drawing remains important when it carries product requirements that are not encoded as authoritative product manufacturing information in the 3D model. The drawing can define datums, geometric tolerances, fits, thread designations, surface texture, edge breaks, heat treatment, coating, cosmetic zones, inspection notes, and revision. The American Society of Mechanical Engineers (ASME) Y14.5 standard can define geometric dimensioning and tolerancing (GD&T) relationships when the drawing invokes it. The standard organizes product definition; it does not prove that a supplier can hold the specified result.

A model-based definition can replace or reduce a separate drawing only when the buyer clearly identifies the authoritative dataset, embedded product manufacturing information, viewing method, units, revision, and acceptance rules. Do not let the supplier guess whether model geometry is basic, nominal, or reference-only. When both model and drawing are supplied, include a precedence note or require clarification for every conflict. A bore shown in 3D may still need a fit, datum relationship, surface condition, and post-coating acceptance that geometry alone cannot communicate.

3. What Technical Details Should Be Included Beyond the Files Themselves?

Beyond CAD files, define material by grade, temper or condition, product form where relevant, governing material specification, certificate level, and substitution rule. Generic "aluminum," "stainless," or "steel" can describe materials with different strength, corrosion, machining, heat-treatment, and finishing behavior. State the finish specification, class, color or texture criteria, masked areas, critical fits, and dimensions that apply after treatment. Also identify cleanliness, marking, restricted substances, traceability, and packaging when these affect acceptance.

The manufacturing definition also needs units, general tolerance rule, feature-specific tolerances, datums, threads, critical-to-quality characteristics, burr and edge requirements, quantity, annual and release demand, prototype or repeat stage, inspection records, sampling, and delivery location. ISO 2768 can support agreed general tolerances within its scope; it should not be applied by assumption. ISO 261 and ISO 965 support general-purpose metric thread selections and tolerances, while ASME B1.1 covers Unified inch threads. Name the applicable standard and class instead of writing only a nominal diameter.

4. How Do Incomplete Files or Missing Details Affect Quotation Accuracy?

Incomplete files reduce quotation accuracy because the supplier must pause for clarification or price an assumption. Material, tolerance, finish, quantity, inspection, and packaging each affect a different cost mechanism. An unknown grade changes stock and cutting assumptions. An undefined final finish hides outside processing and reinspection. Missing datums can change the fixture and gauge route. The supplier may add contingency, exclude work, or issue a low quote that later changes. None of those outcomes gives purchasing a reliable comparison.

Require an assumption register with the quote. Each assumption should name the missing input, the supplier's temporary basis, its price or schedule effect, and the buyer action needed before release. Compare suppliers only after aligning these assumptions. A low unit price is not comparable if one quote excludes material certificates, first-article inspection, coating, thread gauges, or individual packaging. The buyer should also identify whether an alternate material, tolerance, finish, or process may be proposed and who has authority to approve it.

5. How Does Missing Information Affect Lead Time and Order Startup?

Missing information affects lead time by holding the order before programming, material commitment, fixture preparation, outside-process booking, or inspection planning. Available machine capacity cannot remove an unresolved revision, finish, or critical-feature question. Clarification time includes the supplier's question, buyer review, internal engineering approval, and release of updated files. If the order starts from an assumption, a later correction can invalidate the program, stock, fixture, first article, or finish route.

For urgent work, separate quote-ready inputs from production-release inputs, but define the gate between them. A supplier may estimate price from preliminary geometry, yet should not cut material until the controlled revision, material, finish, quantity, and required approvals are released. State the buyer response owner and target decision date. Approved equivalent stock, finish sources, or inspection evidence can shorten the critical path only when engineering and quality accept them before scheduling.

6. Why Revision Control Is Essential in Custom CNC Orders

Revision control prevents the supplier from combining correct files from different product states. Matching filenames are not enough. Record part number, revision, issue date, units, file list, and authority for the model, drawing, specifications, and purchase order. If the STEP model and PDF drawing conflict, production stops until the buyer resolves the difference. An emailed screenshot or marked-up view should not silently supersede the released package. Approved clarifications need a traceable reference and eventual incorporation into the governing definition.

A post-quote change also needs commercial and manufacturing disposition. Identify whether the change affects material already ordered, work in process, finished inventory, programs, fixtures, gauges, inspection reports, packaging, or outside processing. State whether the old revision is cancelled, accepted for a limited quantity, reworked, or segregated. The supplier should re-evaluate price, lead time, validation, and repeat-order assets before accepting the new release. This turns revision control into a production decision rather than a filename exercise.

7. How Should Confidentiality and Data Protection Be Managed?

Confidential CAD data should be distributed only to people and approved external providers who need it for quotation or production. The commercial agreement can define confidentiality, permitted use, secure transfer, access, storage, backup, retention, return or deletion, subcontractor disclosure, and incident notification. The appropriate controls depend on the buyer's risk, industry, jurisdiction, and contract. A generic confidentiality claim does not prove that the supplier's operating process matches the required protection.

Operational file control supports confidentiality and manufacturing accuracy at the same time. Use one approved transfer channel, a file manifest, clear part and revision names, and a designated technical contact. Avoid sending uncontrolled variants through several email threads. Ask how quoting files become released production files and how access is removed when the project ends. Do not place secrets in filenames or rely on a password alone. The buyer should provide only the data needed for the quoted scope.

8. Practical Checklist for Starting a Custom CNC Order

9. Summary

A custom CNC order needs more than a 3D model. Send usable 3D geometry and a controlled drawing or model-based definition, then state the governing files, units, part number, revision, material grade and condition, finish, datums and tolerances, threads, critical features, quantity, production stage, inspection evidence, packaging, delivery, and alternatives. STEP, IGES, native CAD, and PDF serve different purposes. Validate the imported data rather than assuming a familiar extension guarantees correct geometry.

Before release, close every conflict and record quote assumptions, approvals, file authority, and change disposition. Missing information can delay both quotation and production or move hidden cost into later changes. A synchronized RFQ lets suppliers price the same technical and commercial scope, plan the correct CNC machining route, and identify genuine design-for-manufacturing options without changing the product definition by assumption. The buyer can then compare price, lead time, and quality evidence on a controlled basis.
