How Can Buyers Lower the Cost of CNC Machining Metal Parts Through Better Design?

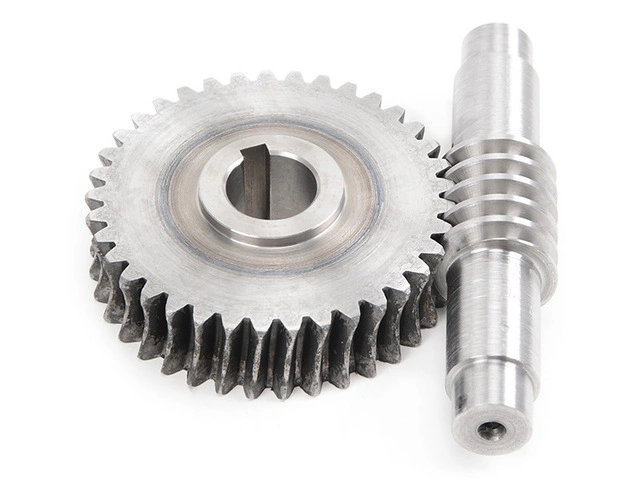

Buyers lower the cost of CNC machining metal parts by reducing paid setup, cutting, tooling, deburring, inspection, and rework without weakening the part's function. The highest-value changes improve tool access, reduce unnecessary setups, standardize practical features, and assign tight controls only to functional characteristics. A cheaper geometry is useful only when the revised drawing still meets load, sealing, alignment, life, safety, and regulatory requirements.
Cost reduction should begin with a feature-level quote review, not a blanket request for a lower price. During prototyping, buyers can compare the current design with an approved DFM alternative before production assumptions harden. The RFQ should include the 3D model, controlled drawing, alloy and condition, finish, annual and release quantities, critical features, mating parts, inspection records, and prohibited changes. The supplier can then identify which feature drives each setup, tool, cycle, gauge, or yield risk.
1. Why Better Design Reduces CNC Cost More Than Many Buyers Expect
Better design reduces CNC cost when it removes a measurable manufacturing operation or lowers a verified process risk. Material price is only one quote input. Setup count, cycle time, tool reach, fixture complexity, tool life, deburring, finishing, inspection, first-article work, and expected yield can each control the final price.
Consider an engineering scenario, not a Neway customer case: a pocketed 6061 aluminum housing has deep blind cavities, several internal corner radii, four thread sizes, and blanket tight tolerances. Opening tool access, using cutter-compatible radii, consolidating justified threads, and limiting critical tolerances can reduce tools and inspection steps. The buyer must still test stiffness, assembly, sealing, and thermal performance before releasing the revision.
Design Factor | Quote Mechanism | Buyer Validation Before Approval |
|---|---|---|
Deep cavities | Long tool reach can require lower engagement, more passes, special tools, and extra finish control. | Confirm minimum wall, required depth, corner access, stiffness, fluid volume, and whether the pocket can open or pass through. |
Mixed thread standards | Each justified thread family can add tools, programming branches, gauges, setup checks, and error-proofing. | Check mating hardware, load, service access, procurement standard, engagement, locking method, and regional service requirements. |
Blanket tight tolerances | Unnecessary controls can add finishing passes, thermal stabilization, special gauges, CMM time, and rejection exposure. | Identify the functional characteristic, datum reference, mating condition, final surface state, gauge, and acceptance rule. |
Standard material and stock | Available grades, conditions, shapes, and sizes can reduce procurement delay, excess stock, and qualification work. | Verify strength, corrosion, temperature, wear, finish response, certification, grain direction, and regulatory constraints. |
Early DFM review | A controlled revision can remove cost before fixtures, programs, gauges, validation, and inventory depend on the old design. | Record the proposed change, quote delta, affected requirement, engineering owner, validation test, revision, and approval status. |
2. Reduce Deep Cavities Because Tool Reach Directly Drives Machining Time
Reduce deep cavities when the depth is not functionally necessary because tool overhang directly affects rigidity, chatter, deflection, chip evacuation, finish, and cycle time. The relevant question is not depth alone. The supplier needs the cavity depth, opening width, smallest corner radius, wall thickness, floor finish, tolerance, material, and available approach direction.
Cost can fall by enlarging internal radii, widening access, using a through feature, separating a cover, allowing a relieved corner, or retaining material where volume is not required. A split construction may reduce machining but add fasteners, sealing, alignment, and assembly risk. The buyer should compare total delivered cost and validate stiffness, leakage, cleaning, fatigue, mass, and service access before changing a monolithic design.
3. Unify Thread Types and Sizes to Simplify Tooling and Inspection
Unify thread families when mating hardware and load requirements allow it. Fewer justified sizes can reduce drills, taps or thread mills, tool changes, gauges, inspection records, and assembly errors. Do not standardize a thread if service hardware, pullout strength, wall thickness, sealing, installed inserts, or regional maintenance requires a different callout.
The drawing should name the governing thread standard, class, depth, entry condition, and gauge rule. ISO 261 and ISO 965 support general-purpose metric thread selections and tolerances; ASME B1.1 covers Unified inch screw threads. These standards define thread geometry, not the required engagement for every material. Blind holes also need drill-point and chip-clearance allowance beyond the usable thread.
Thread Design Choice | Potential Cost Effect | Required Engineering Check |
|---|---|---|
One or two justified standard sizes | Can reduce tools, gauges, programming variation, and assembly error-proofing. | Confirm mating hardware, strength, service tool access, thread class, and procurement availability. |
Multiple sizes or metric/inch systems | Adds cost only where each variation requires separate tooling, gauging, documentation, or handling. | Retain variations that prevent assembly errors or meet interface, safety, legacy, or maintenance requirements. |
Deep blind threads | Can increase chip-control, tool-breakage, tapping, cleaning, and gauge-access risk. | Define usable engagement, bottom clearance, entry chamfer, insert option, material strength, and inspection method. |
4. Optimize Tolerances So Only Critical Features Carry Tight Control
Optimize tolerances by controlling functional relationships tightly and assigning economical general tolerances elsewhere. A wider tolerance does not automatically reduce cost if the same setup, tool, and gauge remain necessary. A tight tolerance can be economical when it is measured from a stable datum in the same setup, but expensive when it crosses setups or applies after heat treatment or coating.
ASME Y14.5 can define datum references and geometric tolerances; ISO 2768 can support agreed general tolerances where its scope fits the drawing. Neither standard proves manufacturing capability. The buyer should identify bearing fits, sealing faces, alignment holes, interfaces, and free-state thin-wall requirements. The supplier should then quote the finishing route, datum transfer, measurement method, sampling, and response to drift for those characteristics.
5. Choose Standard Metal Grades When Special Alloys Are Not Necessary
Choose a commonly available grade and stock form when engineering requirements do not justify a specialty material. Cost depends on more than price per kilogram. Minimum order, stock size, certification, cutting loss, heat treatment, tool wear, distortion, finish response, scrap value, and replenishment time can change the delivered-part cost.
A complete material callout includes grade, temper or condition, product form, applicable material standard, certification, and any substitution rule. Aluminum 6061-T6, austenitic stainless steel grades, free-machining brass, and low-carbon steel can be practical in suitable applications, but none is a universal low-cost choice. Validate strength, corrosion, temperature, wear, conductivity, weldability, coating, compliance, and service life before approving an alternative.
6. Quantity Planning Also Changes the Price Per Part
Quantity changes unit price because programming, setup, fixtures, first-article inspection, tool qualification, and documentation are distributed across each release. Larger batches can lower unit cost, but excess inventory, engineering changes, storage, corrosion, and obsolete parts can erase that saving. Buyers should compare setup amortization with program maturity and demand risk.
Request price breaks for prototype, pilot, and repeat quantities using the same revision and finish assumptions. Separate annual demand from release quantity so the supplier can propose dedicated fixtures or process controls only when justified. Also state whether repeat orders may reuse approved programs, fixtures, gauges, material lots, and inspection plans; otherwise a later batch may carry new setup and validation work.
Order Quantity Pattern | Pricing Mechanism | Buyer Risk and Decision |
|---|---|---|
Prototype release | Setup, programming, and first-article work are distributed across few parts. | Buy enough to validate design and process, but avoid inventory before interfaces and requirements are stable. |
Pilot or moderate repeat batch | Approved tooling and process learning may reduce preparation and variation per part. | Confirm revision control, approved deviation status, capability evidence, packaging, and the reuse terms for future releases. |
Stable production release | Dedicated fixtures, planned tool life, and defined sampling may be economical at proven demand. | Compare unit saving with inventory, forecast, material lot, storage, finish shelf-life, and engineering-change exposure. |
7. Use DFM Review Early to Remove Cost Before It Is Built Into the Part
Use DFM before drawing release because a controlled design change is cheaper before programs, fixtures, gauges, validation, and purchase commitments depend on the geometry. A useful DFM review maps each suggestion to the cost driver it removes. Examples include a setup, special cutter, inaccessible burr, unstable wall, cross-setup tolerance, protected finish area, or dedicated gauge.
The review needs functional context. Provide mating geometry, load and sealing requirements, critical-to-quality features, finish state, annual demand, inspection level, and prohibited changes. Ask for the original and revised quote assumptions, not just a percentage saving. Approve each change through drawing revision and validation so purchasing never buys an unverified geometry from an informal marked-up screenshot.
8. Better Design Also Lowers Rework and Quality Risk
Better design lowers rework when it makes the part less sensitive to tool wear, clamping, burr formation, heat, and datum transfer. Thin walls can move after unclamping. Deep intersecting holes can retain burrs. A critical position tolerance across setups can depend on fixture repeatability. Coating can reduce bore size. These risks cost money through inspection, correction, scrap, and delayed assembly.
Risk reduction must be verified, not assumed from a simpler CAD model. Use a first article to check the final free state, surface-finished condition, threads, burr limits, mating interfaces, and critical datums. For repeat production, connect high-risk features to tool-life controls, in-process checks, calibrated gauges, sampling, and a documented reaction plan. A lower quote is not a saving if rejection moves downstream.
9. Practical Cost-Reduction Guide for Buyers
If Your Goal Is... | Design or RFQ Action | Evidence Before Release |
|---|---|---|
Lower cutting time | Improve cutter access, internal radii, chip exit, depth, and stock-removal strategy. | Supplier identifies the removed tool or cycle step; engineering validates stiffness, volume, fatigue, and interfaces. |
Lower setup complexity | Align accessible features, create stable datum surfaces, and consolidate justified thread families. | Revised process plan shows fewer setups or tools without losing access, clamping stability, or assembly control. |
Lower inspection burden | Apply functional GD&T and general tolerances with explicit final-state acceptance. | Inspection plan identifies critical characteristics, datum, gauge, sampling, uncertainty, record, and reaction to drift. |
Lower material-related cost | Review grade, condition, stock form, size, certification, substitution, and finish compatibility together. | Material comparison confirms function and total delivered cost, including yield, tooling, treatment, scrap, and lead time. |
Lower total program risk | Complete DFM before release and price prototype, pilot, and production quantities separately. | Approved revision, validation results, quote assumptions, first-article record, and repeat-order controls are traceable. |
10. Summary
Lower CNC cost by removing nonfunctional manufacturing work, not by relaxing every requirement. Improve tool access, reduce unjustified setups and feature variation, assign tolerances to functional relationships, select an appropriate material and stock condition, and order quantities that match program maturity. For each change, require a visible quote mechanism and an engineering validation that protects fit, load, sealing, life, finish, and quality.
Complete that review during prototyping, then release only the approved drawing and assumptions. A useful CNC machining RFQ names critical features, datum and final state, material condition, finish, quantities, inspection records, mating requirements, and allowed alternatives. That package lets suppliers quote the same scope and shows whether a proposed saving removes real cost or merely transfers risk to inspection, assembly, or service.
