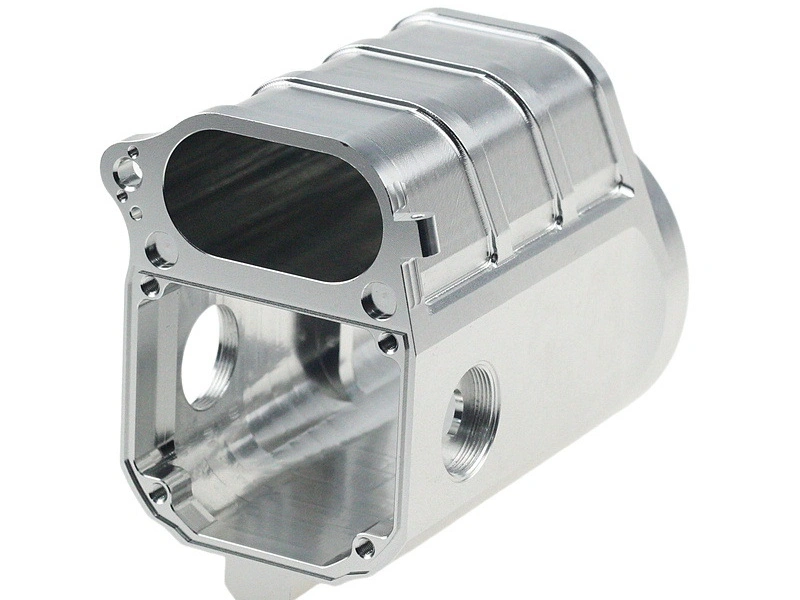

What Inspection Reports Are Recommended for Precision Machined Components?
Recommended inspection reports for precision machined components may include dimensional inspection reports, CMM reports, FAI reports, material certificates, surface roughness reports, heat treatment certificates, surface treatment records, and final quality control documents, depending on drawing and application requirements.
From an engineering perspective, quality control for precision machining services is not only about confirming that the part size is acceptable. It should also prove that critical features, material grade, surface condition, heat treatment, finishing, and batch consistency meet the engineering requirements.
1. Recommended Inspection Reports for Precision Machined Components
Report Type | Purpose |
|---|---|
Dimensional inspection report | Confirms key dimensions against the drawing |
CMM report | Verifies GD&T, position, flatness, profile, and datum-related features |
FAI report | Confirms first article compliance before batch production |
Material certificate | Confirms material grade, specification, and batch traceability |
Surface roughness report | Confirms Ra or other specified finish requirements |
Heat treatment certificate | Confirms hardness or mechanical property-related treatment |
Surface treatment record | Confirms anodizing, plating, passivation, coating, or other finishing requirements |
Final inspection report | Summarizes outgoing quality confirmation before shipment |
2. When CMM Reports Are Recommended

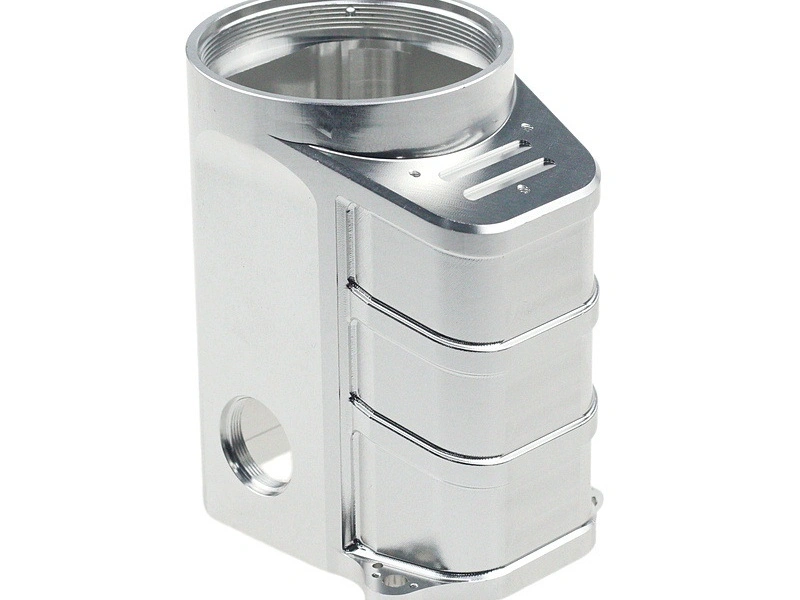

CMM reports are recommended when the part includes GD&T requirements, tight hole position tolerances, datum-controlled features, complex profiles, precision bores, sealing faces, or assembly-critical geometry. These features are difficult to verify reliably with only calipers or basic gauges.
For complex components produced by multi-axis machining, CMM inspection can help confirm multi-side datum relationships, profile accuracy, perpendicularity, flatness, and positional consistency.
3. When FAI Reports Are Useful
FAI reports are useful before moving from prototype to batch production. They confirm that the first article meets drawing requirements, material requirements, surface finish requirements, and inspection standards before the remaining parts are produced.
For low-volume manufacturing, FAI can reduce production risk by confirming dimensions, process stability, and inspection method before scaling into repeat batches.
4. Which Parts Need More Detailed Inspection Documents?
Part Type | Recommended Quality Focus |
|---|---|
Aerospace components | Material traceability, CMM report, FAI, surface condition, and batch control |
Medical device components | Material certificate, surface finish, cleanliness, passivation or finishing records |
Robotics components | Position accuracy, fit, alignment, and repeatability |
Automation fixtures | Datum accuracy, locating holes, flatness, and wear surfaces |
Optical or sensor housings | Profile accuracy, hole position, surface finish, and assembly references |
Sealing components | Surface roughness, bore tolerance, roundness, and visual surface defects |
Bearing-related parts | Bore size, concentricity, roundness, surface roughness, and hardness if required |
Parts with GD&T requirements | CMM report, datum setup, position tolerance, flatness, perpendicularity, and profile |
5. Surface and Material Documents Should Not Be Ignored
For precision machined components, dimensional accuracy alone may not be enough. Material certificates confirm the correct alloy or plastic grade, while surface roughness reports confirm whether sealing, sliding, optical, or cosmetic surfaces meet the drawing requirement.
If the part requires anodizing, passivation, plating, coating, polishing, or heat treatment, the relevant process record should be included when required by the purchase specification. This is especially important for high-value custom parts, functional assemblies, and regulated applications.
6. Inspection Requirements Should Be Confirmed During RFQ
Inspection documents should be defined during the RFQ stage. If CMM reports, FAI, material certificates, surface roughness reports, heat treatment certificates, or full dimensional reports are added after quotation, they may affect cost, lead time, sampling method, inspection fixture planning, and report format.
For general CNC machining services, basic dimensional inspection may be sufficient. For tight-tolerance precision components, the required report type should match the actual functional risk of the part.
7. Practical Engineering Recommendation
Buyers should specify required inspection documents during the RFQ stage, especially for tight tolerance, GD&T, aerospace, medical, robotics, automation, sealing, or functional assembly components. The drawing should clearly identify critical dimensions, datum features, surface roughness, material requirements, heat treatment, finishing, and report requirements.
Neway can prepare a suitable inspection plan based on the 2D drawing, 3D model, material grade, application, tolerance level, production quantity, and required documentation. This helps ensure that precision machined components are delivered with clear, traceable, and application-matched quality records.
