Can CNC prototype parts use the same material and tolerances as production parts?
Can CNC prototype parts use the same material and tolerances as production parts?

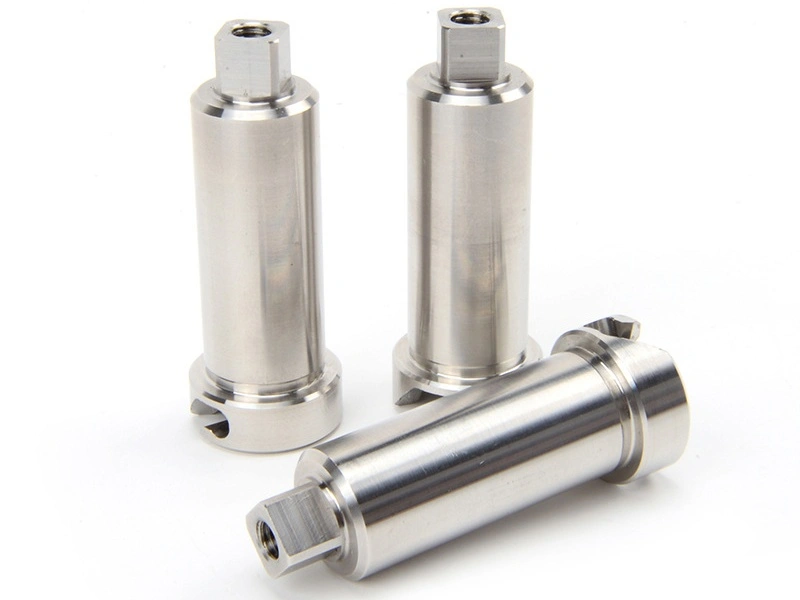

Yes, CNC prototype parts can use the production material and critical tolerances when the test depends on them, but equivalence requires more than matching a grade name and drawing limits. Material condition, stock form, heat treatment, manufacturing route, surface state, datum scheme, and measurement method can change performance or acceptance. Specify which characteristics must represent production intent and why. Use functional CNC prototypes to answer defined assembly, sealing, load, thermal, wear, or interface questions before low-volume manufacturing. A conforming prototype supports that test decision; it does not by itself prove that the future production process is stable or capable.
Begin with the test objective and its failure criteria. Preserve the material properties, features, finishes, and inspection controls that can change the result. Requirements unrelated to the decision may be relaxed only after engineering identifies the risk and records the deviation. The RFQ should distinguish a production-representative part from a convenient substitute, state the condition in which dimensions apply, and require the supplier to report assumptions. This prevents a less expensive prototype from passing a test that the intended production part could fail, or failing for a difference that production will not contain.
Validation Scenario | Production Equivalence to Define |
|---|---|
Assembly validation | Match mating interfaces, datum relationships, threads, fits, edge conditions, and final surface build. Confirm the actual mating parts, assembly sequence, torque, and acceptance gauge or measurement method. |
Sealing test | Control groove and sealing-face geometry, roughness, flatness, coating or treatment, and inspection state. Use representative seals, fluids, pressure direction, temperature, and assembly conditions. |
Strength or fatigue test | Define grade, temper or heat treatment, stock form and orientation, critical radii, surface condition, and load path. A substitute requires an approved property and failure-mode rationale. |
Thermal performance test | Preserve the material state, section thickness, interfaces, finish, contact condition, and temperature boundary that govern heat flow, expansion, distortion, or stability. |
Controlled validation | Apply the approved drawing revision, traceability, special-process requirements, inspection plan, records, and change control. The buyer must define the applicable quality or regulatory basis. |
Pre-production transfer | Separate product conformance from process equivalence. Record prototype tooling, setups, stock, outside processes, inspection methods, and planned production differences that need new validation. |
1. CNC is suitable when the prototype must be close to the final part
CNC is appropriate when the validation needs machined interfaces, controlled datums, true threads, bores, sealing faces, or representative material behavior. The prototype drawing should identify the features that carry the test decision instead of demanding production limits everywhere. A precision machining route can produce those features, yet the route may use different stock, workholding, setups, tools, or inspection access from volume production. Record those differences and decide whether they affect load path, distortion, surface integrity, assembly, or measurement. A part that meets its specified limits is valid for the stated test only when the unrepresented process differences do not undermine the conclusion.

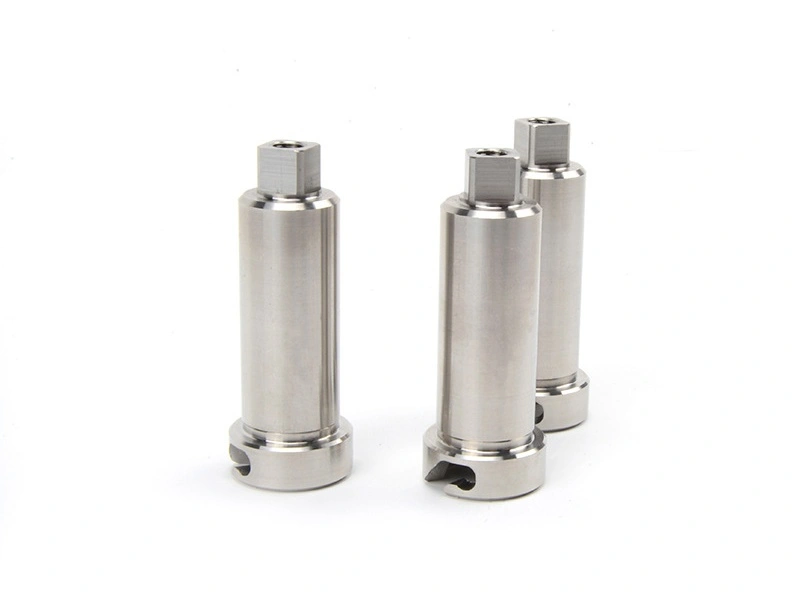

2. Production-grade material is important when material performance affects the test
Match material grade and condition when strength, stiffness, conductivity, corrosion response, wear, temperature behavior, or mass affects the test. The designation alone may be insufficient; include temper, heat treatment, hardness range where controlled, product form, grain or fiber direction where relevant, and required traceability. For aluminum CNC machining, stainless steel CNC machining, or titanium CNC machining, the buyer should identify the exact approved specification rather than relying on the alloy family in the link. If a substitute is proposed, compare the properties and failure mechanism that matter to the test, document the limitation, and obtain disposition before manufacture.
3. Critical tolerances should match function, not the whole drawing by default
Production-level limits belong on characteristics that control fit, seal, motion, alignment, wall behavior, or another test outcome. Define each characteristic relative to the intended datum reference frame and state the part condition, surface-treatment state, and measurement method. Opening an unrelated external dimension may reduce programming, setup, and inspection effort without changing evidence. Tightening every dimension can instead add cost and distortion risk while obscuring the true controls. Separate nominal conformance from process capability: one or several prototype parts inside tolerance do not establish a stable production distribution. Production transfer still needs the intended process, sampling plan, measurement system, and capability or verification evidence required by the buyer.
4. Surface finish and inspection may also need to match production
Match the final surface state when coating thickness, roughness, masking, contact marks, friction, sealing, wear, electrical behavior, thermal transfer, or appearance affects acceptance. State whether dimensional limits apply before or after treatment and identify features that require post-finish verification. Inspection equivalence also matters: a result depends on datum simulation, fixturing, probe or gauge access, temperature, sampling, and reporting rules, not merely the equipment name. Ask the supplier to return the measured characteristic, method, part state, result, and deviation disposition. This creates evidence that the prototype satisfied the same functional boundary rather than only receiving a similar-looking finish.
5. When requirements can be reduced to save cost
Requirements can be reduced when they cannot influence the current decision and the deviation is explicit. An envelope model may use substitute stock, relaxed cosmetic limits, simplified finish, or reduced reporting if the test only checks space claim or assembly sequence. A functional test may still relax noncritical exterior dimensions while preserving interfaces, material state, and loaded geometry. Review each proposed change against the test input, predicted failure mode, and validation method. Record what the prototype cannot prove after the change. Do not substitute material, omit heat treatment, or move acceptance to a pre-finish condition solely because the part remains machinable; those changes may alter the evidence while leaving the shape unchanged.
6. The right answer depends on what the prototype must prove
The correct equivalence level is the smallest controlled set that preserves a trustworthy answer to the test question. In the RFQ, list the test purpose, production material and state, critical characteristics, final finish, mating conditions, loads or environment, inspection method, and pass or fail criteria. Ask the supplier to identify every prototype-specific choice, proposed deviation, outside process, measurement state, and planned production change. Engineering should then classify each difference as irrelevant, requiring analysis, or requiring another test. Freeze that disposition with the drawing and model revision. This approach avoids paying for production controls that add no evidence while preventing an apparently successful prototype from authorizing a production decision it was never built to support.
