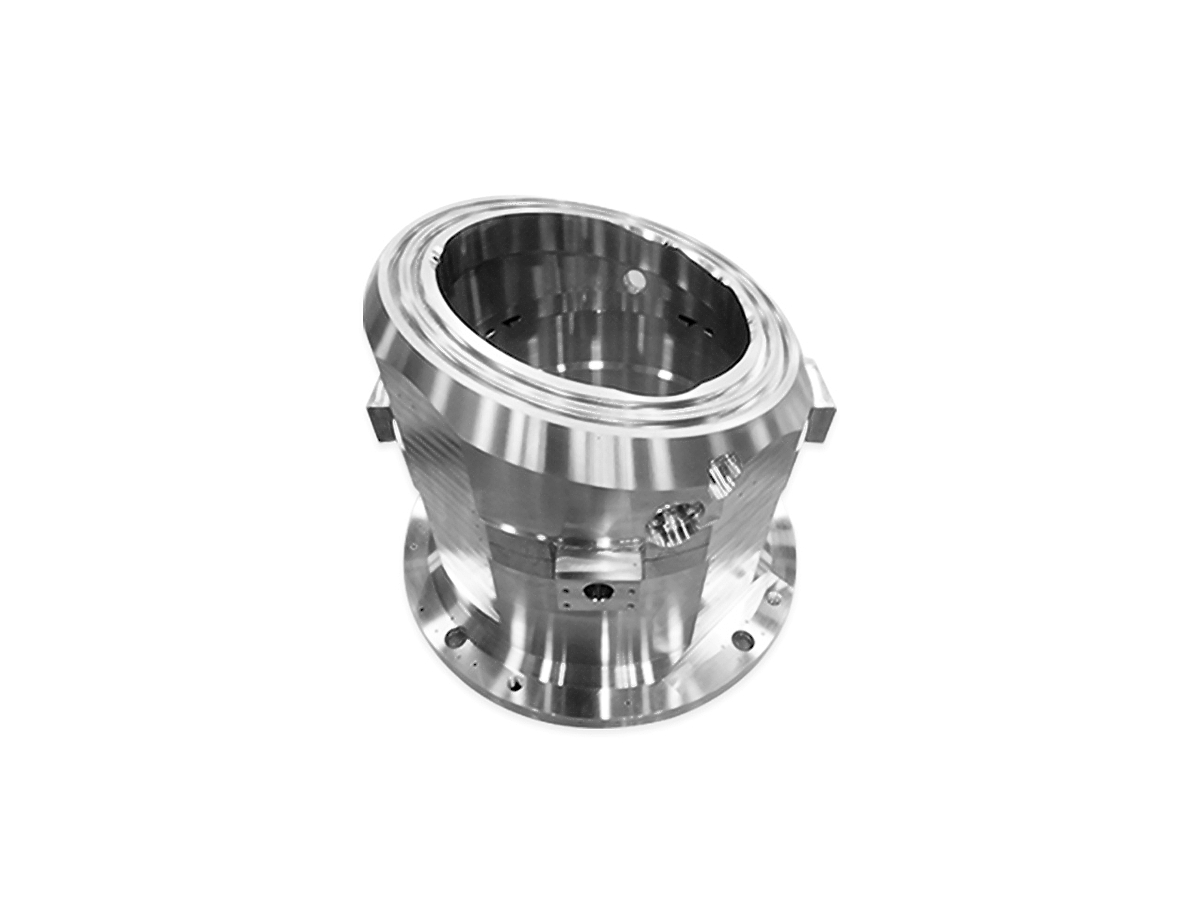

Robust CNC Machining of 4140 Steel for Heavy-Duty Parts and High-Performance Components
Introduction to CNC Machined 4140 Steel in Heavy-Duty and High-Performance Applications
Industries such as industrial equipment, automotive, and oil and gas rely on robust materials capable of enduring extreme loads, heavy stresses, and harsh operating conditions. Among the top materials for these demanding applications, 4140 steel (Chromium-Molybdenum alloy steel) stands out for its exceptional strength, toughness, wear resistance, and fatigue durability. Ideal for producing heavy-duty shafts, gears, spindles, couplings, and high-performance automotive and industrial components, 4140 steel ensures superior reliability and longevity.
Utilizing advanced CNC machining processes, manufacturers achieve precise dimensional accuracy, intricate geometries, and excellent surface finishes in 4140 steel, significantly enhancing the performance and durability of critical components.
Comprehensive Analysis of 4140 Steel for Heavy-Duty Components
Comparative Performance of 4140 Steel and Related Materials
Material | Tensile Strength (MPa) | Yield Strength (MPa) | Machinability | Typical Applications | Advantage |
|---|---|---|---|---|---|
655-979 | 415-655 | Good | Heavy-duty shafts, gears | Excellent toughness, high wear resistance | |
655-979 | 415-655 | Good | Aircraft frames, automotive shafts | High strength-to-weight ratio | |
930-1080 | 780-930 | Moderate | High-stress components, axles | Superior toughness, high fatigue strength | |
570-700 | 310-450 | Very Good | General shafts, bolts | High machinability, moderate strength |
Strategic Material Selection for CNC Machined 4140 Steel Components
Choosing 4140 steel for CNC machining in heavy-duty and high-performance applications requires careful evaluation of strength, toughness, fatigue resistance, and environmental conditions:
Heavy-duty shafts, gears, couplings, and spindles subjected to extreme loads and repeated stresses significantly benefit from the high tensile strength (up to 979 MPa) and superior fatigue resistance of 4140 steel.
High-performance automotive and industrial components requiring outstanding toughness, wear resistance, and resilience under continuous stress conditions select 4140 steel for optimal performance and reliability.
For applications needing even higher tensile strength (up to 1080 MPa), such as critical axles or highly stressed industrial machinery parts, 4340 steel is chosen to meet rigorous performance demands.
General-purpose components, such as standard shafts or bolts with moderate load requirements, often choose 1045 steel due to its cost-effectiveness and machinability.
Precision CNC Machining Processes for 4140 Steel Components
CNC Machining Process Performance Overview
CNC Machining Process | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.005-0.02 | 0.4-3.2 | Heavy-duty brackets, gears | Flexible, precise geometries | |
±0.005-0.01 | 0.4-1.6 | Shafts, spindles, couplings | High rotational accuracy, superior finishes | |
±0.01-0.02 | 1.6-3.2 | Bolt holes, precision fittings | Accurate hole alignment | |
±0.003-0.01 | 0.2-0.6 | Complex industrial parts, high-performance automotive components | Ultra-precise, intricate detailing |
Optimizing CNC Machining Processes for 4140 Steel Components
Selecting the optimal CNC machining method for 4140 steel depends on component complexity, required dimensional accuracy, and desired surface finish quality:
Heavy-duty brackets, gears, and complex industrial components requiring dimensional tolerances of ±0.005 mm are effectively machined using CNC Milling Service due to its versatility in producing intricate and accurate features.
Precision rotating components such as shafts, spindles, and couplings that demand exact rotational tolerances (±0.005 mm) and excellent surface finishes (Ra ≤1.6 µm) rely on CNC Turning Service to meet strict quality standards.
Components needing precise and consistently positioned holes, such as fittings and assembly parts, utilize CNC Drilling Service for maintaining accurate hole placement (±0.01 mm) and controlled depth.
Intricately designed and highly precise automotive and industrial parts, requiring ultra-tight tolerances (±0.003 mm) and superior surface finishes (Ra ≤0.6 µm), significantly benefit from Multi-Axis CNC Machining Service for maximum precision and performance.
Advanced Surface Treatments to Optimize 4140 Steel Performance
Surface Treatment Performance and Suitability
Treatment Method | Corrosion Resistance | Wear Resistance | Industrial Suitability | Typical Applications | Key Features |
|---|---|---|---|---|---|
Good | Moderate | Excellent | Industrial gears, shafts | Economical corrosion protection, improved aesthetics | |
Excellent (>1500 hrs ASTM B117) | High (HV500-700) | Excellent | Automotive fittings, fasteners | Increased durability, superior wear resistance | |
Excellent (>1500 hrs ASTM B117) | High | Excellent | Industrial brackets, frames | Durable finish, corrosion-resistant | |
Moderate | Very High | Excellent | Critical shafts, heavy-duty gears | Improved mechanical properties, enhanced fatigue life |
Strategic Surface Treatment Selection for CNC Machined 4140 Steel
The correct choice of surface treatment depends on operational conditions, wear resistance requirements, and mechanical demands:
Heavy-duty industrial gears and shafts exposed to moderate environmental conditions typically utilize Black Oxide Coating for cost-effective corrosion protection and visual enhancement.
Automotive fittings, fasteners, and critical components subject to harsh conditions benefit from Electroplating, which provides outstanding corrosion resistance (≥1500 hours ASTM B117) and surface hardness (500-700 HV).
For industrial brackets, heavy-duty frames, and parts needing robust corrosion protection and aesthetic durability, choose Powder Coating for reliable performance and extended lifespan.
Critical high-stress components such as industrial shafts, gears, and performance-critical automotive parts require Heat Treatment to significantly improve their tensile strength, toughness, and resistance to fatigue.
Rigorous Quality Assurance for CNC Machined 4140 Steel Parts
Detailed Quality Control Practices
Robust quality control ensures the precision and durability of CNC machined 4140 steel components:
Dimensional Inspection: Precision inspection via Coordinate Measuring Machines (CMM) and optical comparators ensuring compliance with tolerances (±0.003 mm to ±0.01 mm).
Surface Finish Testing: Surface quality assessment using profilometers, ensuring specified roughness levels (Ra 0.2-3.2 µm).
Mechanical Property Testing: Tests of ASTM-standard tensile (ASTM E8), yield, and hardness (Rockwell C) validate material strength and consistency.
Corrosion Resistance Testing: ASTM B117 salt spray testing to verify coating durability (≥1000 hrs).
Non-Destructive Testing (NDT): Ultrasonic, magnetic particle and radiographic evaluations detect potential internal defects, ensuring component integrity.
Comprehensive Documentation: ISO 9001-compliant quality records maintain complete traceability and standards compliance.
Key Applications of CNC Machined 4140 Steel Components
Heavy-duty industrial shafts and gears.
Automotive and performance vehicle components.
Oil & gas drilling components.
High-performance couplings and spindles.
