CNC Turning and Grinding Solutions for 4340 Steel Industrial Bushings

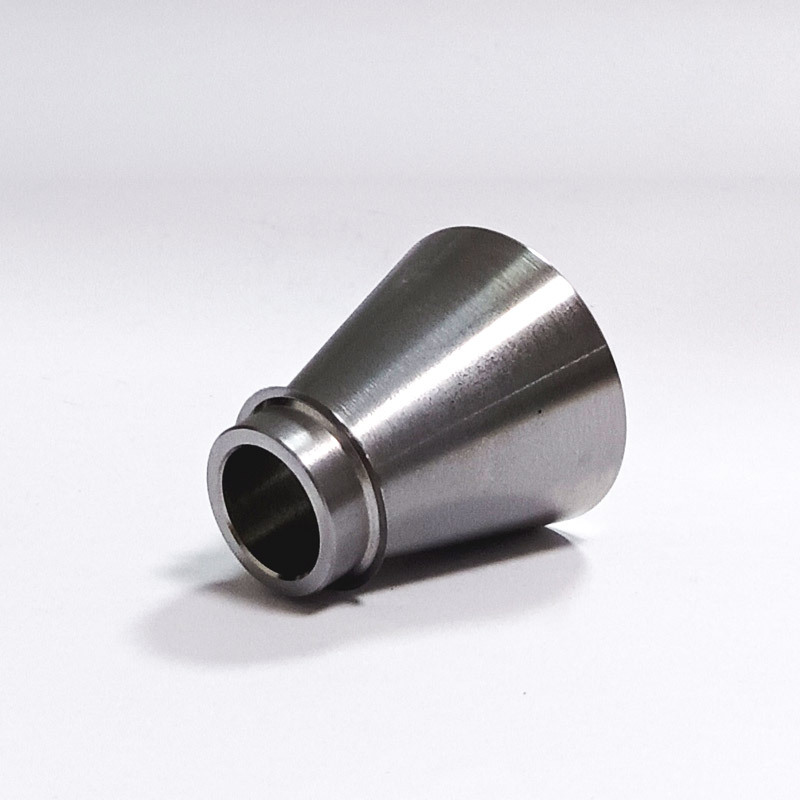

CNC Machining of Industrial Shaft Bushings: Strength and Precision for Demanding Environments
Industrial shaft bushings serve as high-load interfaces between rotating shafts and surrounding housings. They require excellent wear resistance, dimensional stability, and fatigue strength, especially in equipment operating under high pressure, speed, or impact. At Neway, we specialize in the production of precision 4340 steel bushings using CNC turning and CNC grinding, with integrated heat treatment to enhance surface durability and internal strength for industrial equipment applications.
Our bushings are engineered for tight fit, concentricity, and long service life under repetitive mechanical stress.
Why 4340 Steel Is Ideal for Industrial Bushing Applications
Ultra-High Strength Alloy Steel
4340 is a nickel-chromium-molybdenum steel offering tensile strength up to 1080–1220 MPa after hardening. It provides superior fatigue, torsional, and impact resistance compared to general carbon steels, making it ideal for dynamic load-bearing interfaces in heavy machinery.
Heat Treatable for Core Toughness and Surface Hardness
4340 responds well to quench-and-temper or induction hardening. The hardened case resists wear while the tough core absorbs vibration and impact, reducing risk of fracture in high-cycling operations.
CNC Turning and Grinding Process for Shaft Sleeves
CNC Turning for ID/OD Geometry and Pre-Finishing
We use bar-fed and chucking CNC lathes to form both the inner bore and outer diameter of the bushing. Features include:
Interference or slip-fit outer diameters
Precision internal bores for shafts or bearings
Flanges, grooves, oil holes as required
Turning tolerances:
OD/ID: ±0.01 mm
Concentricity: ≤0.02 mm
Surface finish: Ra ≤ 3.2 µm (pre-grind)

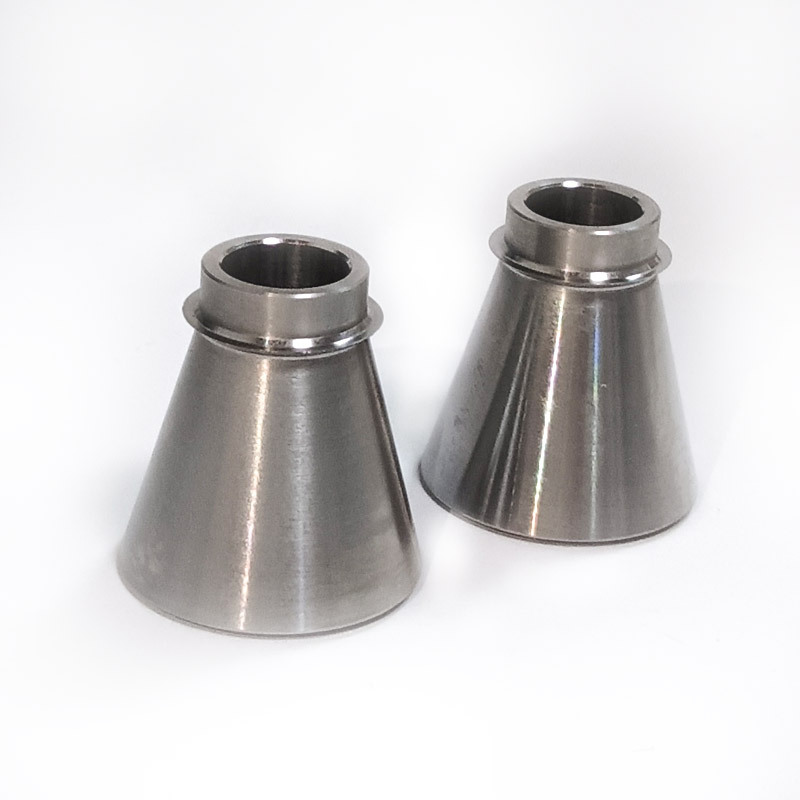

CNC Grinding for Bearing Surfaces and Fine Tolerances
Post heat-treatment, critical surfaces are ground to final tolerances using CNC grinding:
Final tolerance: ±0.005 mm
Surface roughness: Ra ≤ 0.4 µm
Roundness and coaxiality are maintained across ID and OD
This ensures tight dimensional control for interference fits, bearing alignment, and rotational precision.

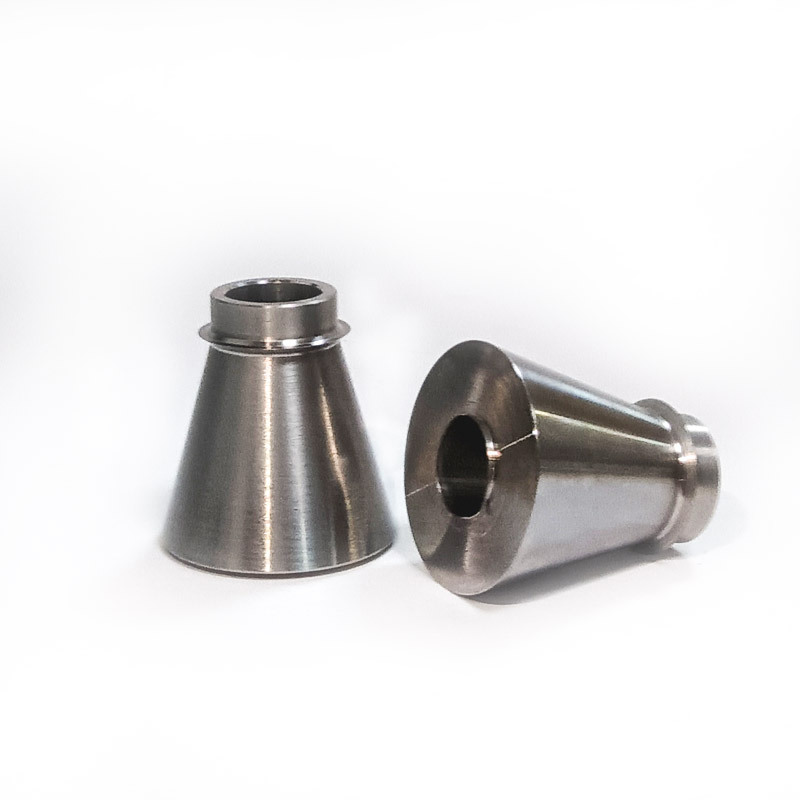

Heat Treatment for Wear and Load Performance
4340 bushings are heat-treated to achieve a surface hardness of HRC 40–50 while maintaining a ductile core. Our controlled heat treatment process includes:
Oil quenching with temperature control
Tempering for stress relief and impact resistance
Optional induction hardening for localized wear surfaces
All treatments are followed by dimensional inspection and hardness testing to verify mechanical integrity.
Quality Assurance and Dimensional Validation
CMM validation of ID, OD, and wall thickness
Roundness and taper measured using air gauges and form testers
Hardness verification using Rockwell C scale
Documentation: COC, material certificate, heat treatment chart, full dimensional reports
Why Choose Neway for CNC Machined Industrial Bushings
Expertise in 4340 alloy steel machining with integrated turning, grinding, and thermal processing
One-stop CNC service for industrial bushing production
Batch control for mass production with full QA traceability
Heat-treated and ground parts delivered with consistency and reliability
CNC Services for Industrial Shaft Bushing Manufacturing
Neway provides end-to-end CNC manufacturing services for heavy-duty bushing components across industrial sectors. Services include:
CNC Turning and Grinding: Ensuring tight tolerance and surface finish on both ID and OD
4340 Steel CNC Machining: For ultra-high strength and fatigue-resistant bushings
Integrated Heat Treatment: Controlled quench and temper to meet wear and load performance requirements
We help industrial OEMs reduce wear failures and improve long-term component performance through precision bushing solutions.
FAQs
What is the typical hardness range for heat-treated 4340 bushings?
How does Neway control concentricity between ID and OD during machining?
Can you manufacture bushings with oil grooves or flange geometries?
What industries commonly use 4340 steel bushings?
Are full heat treatment and dimensional inspection reports provided with each order?
